A4 Mk3
Power unit
6-cylinder direct petrol injection engine with supercharger (3.0 ltr. 4-valve), mechanics
Exhaust system / Silencers
Renewing tailpipe
Renewing tailpipe
Renewing tailpipe
Special tools and workshop equipment required
t

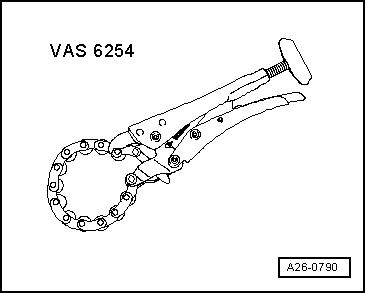

Chain pipe cutter -VAS 6254-
Procedure
l
Tightening torques
→ Chapter „Silencers - exploded view“
–
Cut through tailpipe
-1-
with chain-type pipe cutter -VAS 6254- at the position marked
-C-
.
–
Push on tailpipe
-3-
as far as marking
-A-
. Align slit in tailpipe with marking
-B-
.
–
Tighten nut for clamp
-2-
.
