Separating engine from manual gearbox Special tools and workshop equipment required t  Support set for Audi -VAS 6131/10-, supplementary set -VAS 6131/13- and gearbox support -VAS 6131/14-

t  Adapter -T40058-

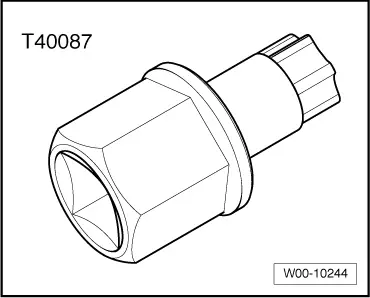

t  Socket Torx T 60 -T40087- t  Bolt M8x35 with washer (outer Ø 25 mm)

Procedure l  Engine/gearbox assembly removed and secured to scissor-type assembly platform -VAS 6131 A- –  Detach electrical connector -2- from bracket and unplug.   Note t  The illustration shows the installation position with the engine installed. t  Disregard -item 1-.

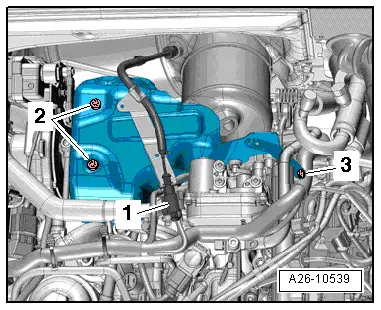

–  Move electrical connector -1- clear and disconnect. –  Remove bolts -2- and -3-. –  Detach heat shield for turbocharger.   Note The illustration shows the installation position with the engine installed.

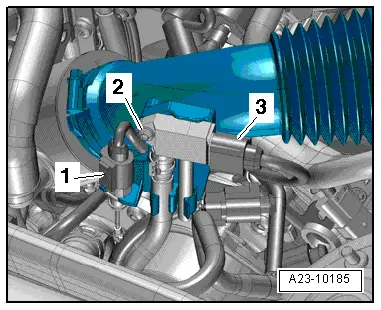

–  Unplug electrical connectors -1- and -3-.   Note t  The illustration shows the installation position with the engine installed. t  Disregard -item 2-.

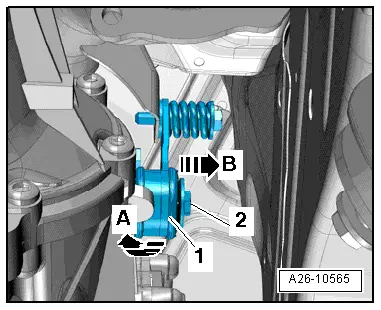

A5 up to vehicle identification no. 8T-8-009 998: –  Remove bolt -2-. –  Press retainer -1- in direction of -arrow B- and pivot to the rear -arrow A-.

A4 (all), A5 from vehicle identification no. 8T-8-009 999 onwards: –  Remove bolt -3-.   Note Disregard -items 1, 2-.

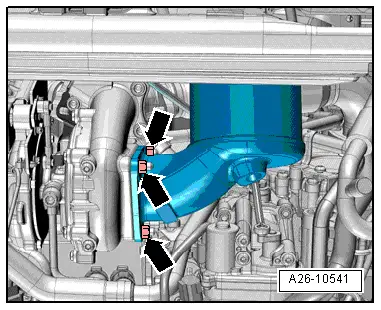

All vehicles (continued): –  Remove nuts -arrows- for particulate filter and turbocharger. –  Detach particulate filter with front exhaust pipe.

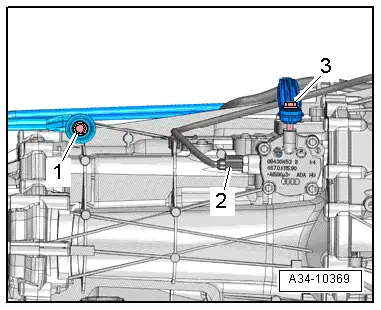

–  Unplug electrical connector -2- for reversing light switch -F4- and move electrical wiring clear.   Note Disregard -items 1, 3-.

–  Remove bolts -1- and -3-. –  Loosen bolt -2- and move heat shield -B- clear to one side.   Note Disregard -item A-.

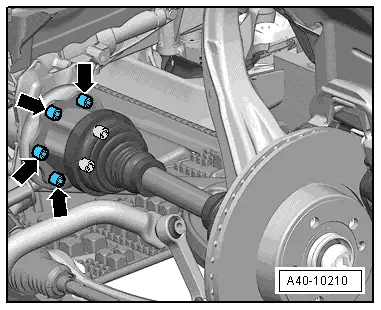

–  Unbolt drive shafts (left and right) from gearbox flange shafts → Rep. gr.40. –  Move electrical wiring for engine speed sender -G28- clear on gearbox.

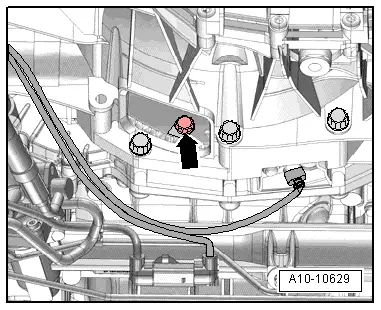

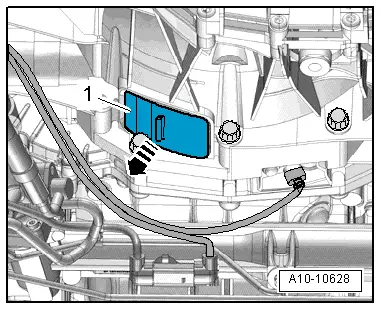

–  Detach bottom cover -1- from gearbox -arrow-.

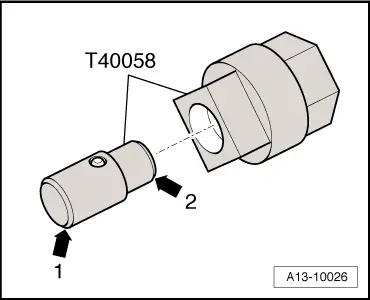

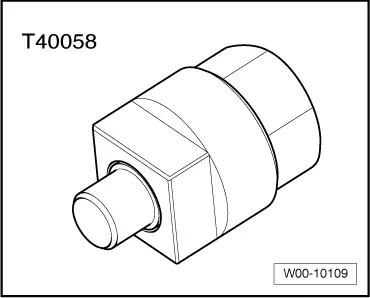

–  Insert guide pin of adapter -T40058- as follows: l  The larger-diameter section -arrow 1- faces towards the engine. l  The smaller-diameter section -arrow 2- faces the adapter.

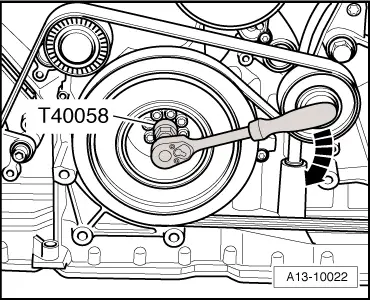

–  Counterhold crankshaft using adapter -T40058- when slackening bolts for clutch module.   Note When performing the next step, turn the crankshaft only in the normal direction of rotation -arrow-.

–  Remove 6 bolts -arrow- for clutch module, turning crankshaft 60° in normal direction of rotation each time.

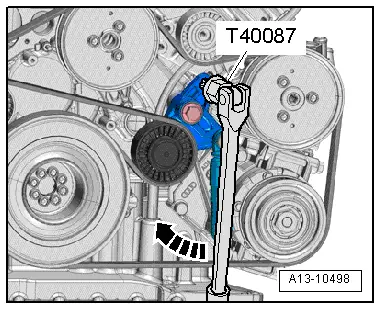

Caution If a used belt runs in the opposite direction when it is refitted, this can cause breakage. Before removing, mark direction of rotation of poly V-belt with chalk or felt-tip pen for re-installation. –  Slacken poly V-belt by turning tensioner in clockwise direction -arrow- using socket Torx T 60 -T40087-. –  Remove poly V-belt from tensioner and release tensioner.

–  Remove bolt -2- and pivot tensioner in clockwise direction -arrow-.   Note Disregard -item 1-.

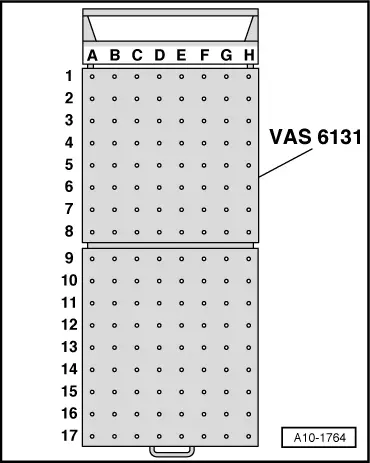

–  Set up scissor-type assembly platform -VAS 6131 A- with support set for Audi -VAS 6131/10-, supplementary set -VAS 6131/13- and gearbox support -VAS 6131/14- as follows:   Note The other support elements remain unchanged.

Platform coordinates	Parts of support set for Audi -VAS 6131/10-, supplementary set -VAS 6131/13- and gearbox support -VAS 6131/14-
D2	/13-7
B10	/10-1	/10-2	/10-5	/14
G10	/10-1	/10-2	/10-5

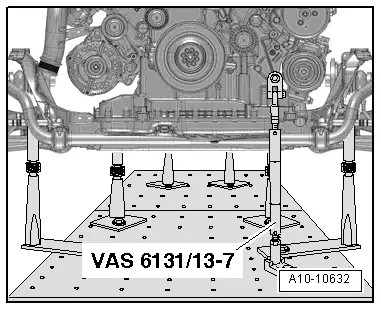

–  Secure support -VAS 6131/13-7- in threaded hole for poly V-belt tensioner at front left of engine with M8x35 bolt and washer (outside diameter 25 mm), as illustrated. –  Secure support -VAS 6131/13-7- to scissor-type assembly platform and tighten to 20 Nm.

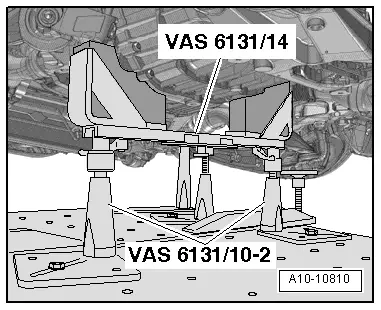

–  Position support elements from -VAS 6131/10- and gearbox support -VAS 6131/14- at front of gearbox, as illustrated. –  Screw spindles on both sides upwards until gearbox support -VAS 6131/14- makes full contact with gearbox. –  Tighten base plates for support elements to 20 Nm on scissor-type assembly platform -VAS 6131 A-.

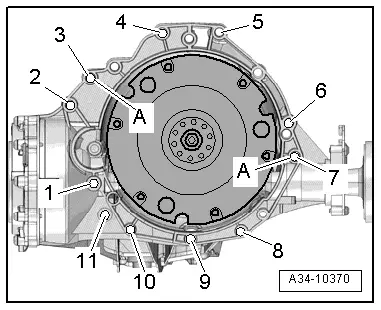

–  Remove bolts -1- and -2- for starter. –  Separate starter from gearbox and leave in position. –  Unscrew remaining bolts -3 ... 11- securing engine to gearbox.   Note Disregard -item A-.

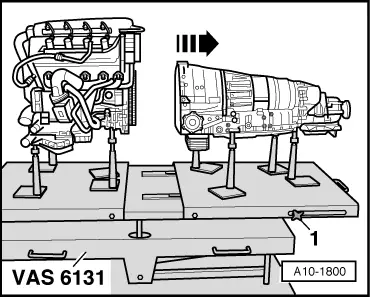

–  Loosen clamping bolts -1- on sides of scissor-type assembly platform -VAS 6131 A- and pull rear section of platform together with gearbox towards rear -arrow-.
