Audi A4 Workshop Service and Repair Manuals

Timing chain covers - exploded view

1 -	Crankshaft oil seal (gearbox end)

q	Removing and installing → Chapter

2 -	Sender wheel

q	For engine speed sender -G28-

3 -	Timing chain cover (bottom)

q	Removing and installing → Chapter

4 -	Dowel sleeve

q

2x

5 -

Bolt

q

Renew

q	Tightening torque and sequence → Fig.

6 -

Bolt

q

9 Nm

7 -	Cover plate

8 -

O-ring

q

Renew

9 -

Bolt

q

Renew

q	Tightening torque and sequence → Fig.

10 -	Timing chain cover (left-side)

q	Removing and installing → Chapter

11 -

Gasket

q

Renew

12 -

Bolt

q

Renew

q	Tightening torque and sequence → Fig.

13 -

Bolt

q

9 Nm

14 -	Vacuum pump

q	Removing and installing → Rep. gr.47

15 -

O-rings

q

Renew

16 -	Timing chain cover (right-side)

q	Removing and installing → Chapter

17 -

Gasket

q

Renew

18 -

Bolt

q

Renew

q	Tightening torque and sequence → Fig.

19 -	Dowel sleeve

q

2x

20 -	Sealing element

q

2x

21 -	Engine speed sender -G28-

q	Removing and installing → Rep. gr.28

22 -

Bolt

q	Tightening torque → Rep. gr.28

23 -

Bolt

q	Tightening torque and sequence → Fig.

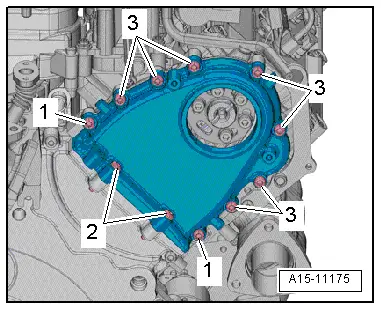

Timing chain cover (left-side) - tightening torque and tightening sequence –  Tighten bolts in 4 stages as follows:

Stage	Bolts	Tightening torque/angle specification
1.	-1-	3 Nm
2.	-2-	9 Nm
3.	-1-	9 Nm
4.	-3-	9 Nm in diagonal sequence

Timing chain cover (right-side) - tightening torque and tightening sequence –  Tighten bolts in 4 stages as follows:

Stage	Bolts	Tightening torque/angle specification
1.	-1-	3 Nm
2.	-2-	9 Nm
3.	-1-	9 Nm
4.	-3-	9 Nm in diagonal sequence

Timing chain cover (bottom) - tightening torque and tightening sequence –  Tighten bolts for timing chain cover (bottom) in three stages as follows:

1.  Pre-tighten bolts -1 … 9- to 5 Nm in diagonal sequence starting from inside and working outwards. 2.  Tighten bolts -1 … 7- to 9 Nm in diagonal sequence starting from inside and working outwards. 3.  Tighten bolts -8- and -9- to 23 Nm.
