Removing and installing oil pressure switch -F22- - engine codes CCLA, CCWA, CCWB, CGKA, CGKB
Removing
–
Remove front noise insulation
-1-
→ Rep. gr.66
.
–

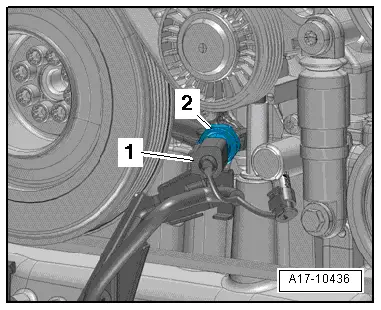

Unplug electrical connector
-1-
.
Note
Place a cloth underneath to catch escaping engine oil.
–
Remove oil pressure switch -F22-
-item 2-
.
Installing
Installation is carried out in the reverse order; note the following:
l
Tightening torque
→ Chapter „Oil seal and sealing flange (pulley end) - exploded view“
Note
Renew seal.
–
Install noise insulation
→ Rep. gr.66
.
