Removing and installing sump (top section)
Removing and installing sump (top section)
Special tools and workshop equipment required

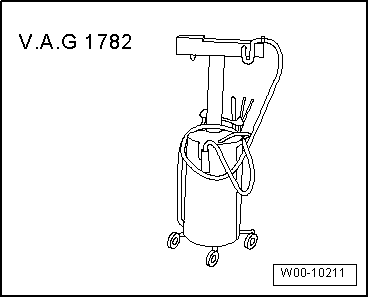

t  Used oil collection and extraction unit -V.A.G 1782-
t  Safety goggles
t  Electric drill with plastic brush
t  Sealant → Electronic parts catalogue
Removing
l  Engine removed and secured to engine and gearbox support → Chapter
l  Engine oil drained → Booklet811, → Booklet812 or → Booklet818.
–  Remove drive plate → Chapter.
–  Remove timing chain covers: left-side → Chapter, right-side → Chapter, bottom → Chapter.
–  Remove chain for auxiliary drives → Chapter.
–  Remove sealing flange (pulley end) → Chapter.
  W00-10211

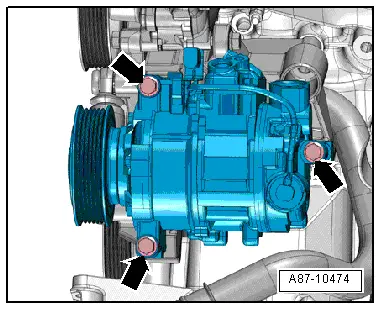

–  Remove air conditioner compressor → Rep. gr.87.
–  Remove sump (bottom section) → Chapter.
–  Remove oil pump → Chapter.
  A87-10474

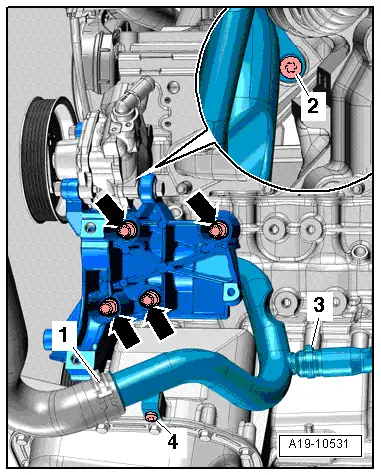

–  Remove bolts -2- and -4- and detach coolant pipe (left-side) from subframe.
  Note
Disregard items marked -1, 3- and -arrows-.
–  Removing idler roller for poly V-belt → Chapter.
  A19-10531

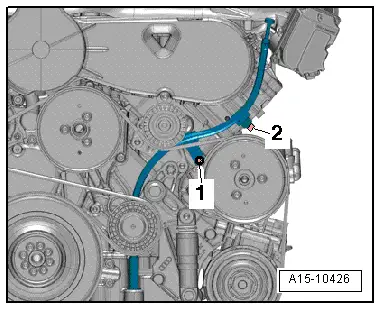

–  Remove bolts -1- and -2- and detach guide tube for oil dipstick.
  A15-10426

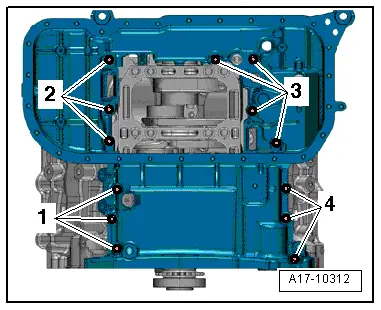

–  Remove bolts -1 ... 4- for sump (top section).
–  Press sump (top section) off dowel pins on cylinder block.
Installing
  Note
Renew gaskets, seals and O-rings.
  Caution
Protect lubrication system against contamination.
Cover exposed parts of the engine.
  A17-10312
  WARNING
Protect eyes against injuries.
Wear safety goggles.

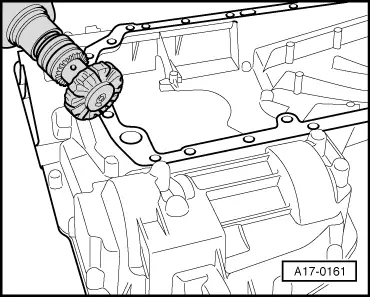

–  Remove remaining sealant from sump (top section) and cylinder block using rotating plastic brush or similar.
–  Clean sealing surfaces; they must be free of oil and grease.
  Note
  A17-0161
Note the use-by date of the sealant.

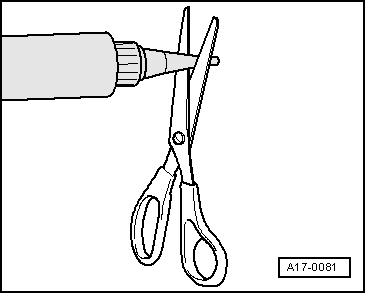

–  Cut off nozzle of tube at front marking (nozzle Ø approx. 1.5 mm).
  A17-0081
–  Fit seals -1- and -2- in sump (top section).
  Caution
Make sure lubrication system is not clogged by excess sealant.
The sealant bead must not be thicker than specified.

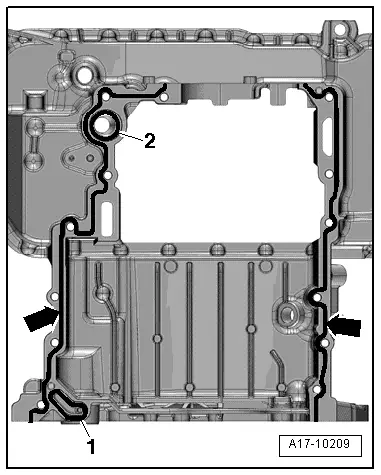

–  Apply beads of sealant -arrows- onto clean sealing surface of sump (top section) as shown in illustration.
l  The grooves on the sealing surfaces must be completely filled with sealant.
l  The beads of sealant must project 1.5 … 2.0 mm above the sealing surface.
  Note
The sump (top section) must be installed within 5 minutes after applying the sealant.
  A17-10209
–  Fit sump (top section) and tighten bolts → Fig..
Remaining installation steps are carried out in reverse sequence; note the following:
–  Install idler roller for poly V-belt → Chapter.
–  Install coolant pipe (left-side) → Chapter.
–  Install oil pump → Chapter.
–  Install sump (bottom section) → Chapter.
–  Install air conditioner compressor → Rep. gr.87.
–  Install sealing flange (pulley end) → Chapter.
–  Install chain for auxiliary drives → Chapter.
–  Install timing chain covers: left-side → Chapter, right-side → Chapter, bottom → Chapter.
–  Install drive plate → Chapter.
