Removing and installing exhaust gas temperature sender -G496-/-G648-
Special tools and workshop equipment required
t
Crow-foot ring spanner, 17 mm
Removing
–

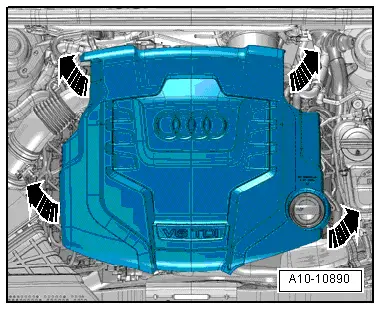

Remove engine cover panel
-arrows-
.

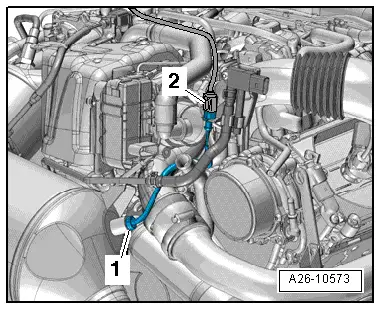

Vehicles without SCR catalytic converter:
–
Detach electrical connector
-2-
from bracket and unplug.
–
Remove exhaust gas temperature sender -G496-/-G648-
-item 1-
.

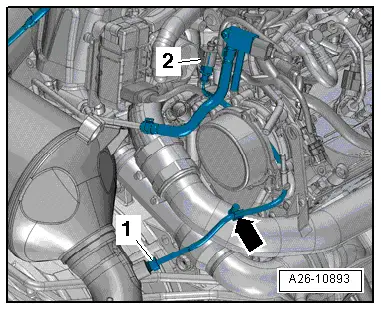

Vehicles with SCR catalytic converter:
–
Detach electrical connector
-2-
from bracket, unplug and move electrical wire clear
-arrow-
.
–
Remove exhaust gas temperature sender -G496-/-G648-
-item 1-
.
Installing
Install in reverse order.
l
Tightening torque
→ Chapter „Exhaust gas temperature senders - exploded view“
