A4 Mk3

Removing and installing intermediate pipe (right-side)
Removing and installing intermediate pipe (right-side)
Removing
–  Remove air cleaner housing → Rep. gr.23.
–  Remove turbocharger → Chapter.
–  Remove particulate filter: A5 up to vehicle identification no. 8T-8-009 998 → Chapter; A4 (all), A5 from vehicle identification no. 8T-8-009 999 onwards → Chapter.

–  Remove bolts -1-, -2- and nuts -3- and -4- and remove intermediate pipe (right-side).
  Note
For illustration purposes, the installation position is shown with the engine removed.
Installing
Installation is carried out in the reverse order; note the following:
l  Tightening torque → Chapter „Exhaust manifold - exploded view“
  Note
Renew seals and/or gaskets.
–  Install particulate filter: A5 up to vehicle identification no. 8T-8-009 998 → Chapter; A4 (all), A5 from vehicle identification no. 8T-8-009 999 onwards → Chapter.
–  Install turbocharger → Chapter.
–  Install air cleaner housing → Rep. gr.23.

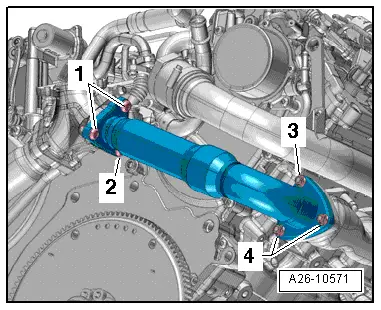

  A26-10571
