A4 Mk3

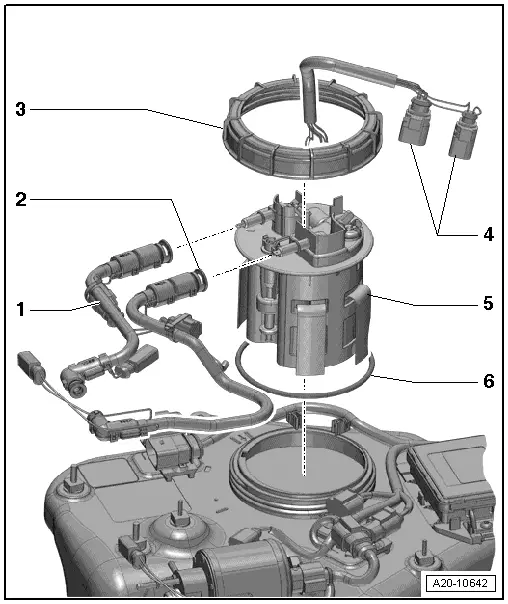

Reservoir for reducing agent - exploded view

Reservoir for reducing agent - exploded view
1 - Return line
q   With heater
  WARNING
Safety risk due to escaping reducing agent.
Observe safety measures for handling reducing agent → Chapter.
2 - Supply line
q   With heater
  WARNING
Safety risk due to escaping reducing agent.
Observe safety measures for handling reducing agent → Chapter.
3 - Union nut
q   Renew
q   Remove and install using special wrench -T50014-
q   Tightening → Anchor
4 - Electrical connectors
q   For tank sender for reducing agent -G684-
q   For temperature sender for reducing agent -G685-
q   For heater for reducing-agent tank -Z102-
5 - Reservoir
q   With tank sender for reducing agent -G684-
q   With temperature sender for reducing agent -G685-
q   With heater for reducing-agent tank -Z102-
q   With filter
q   Removing and installing → Chapter
6 - Seal
q   Renew
q   Install dry


Disconnecting reducing agent lines
  WARNING
Safety risk due to escaping reducing agent.
Observe safety measures for handling reducing agent → Chapter.

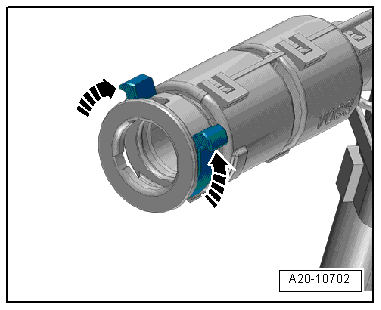

–  To disconnect reducing agent lines, press release catches in direction of -arrows-.
  A20-10702
