Removing and installing engine mountings
Removing and installing engine mountings
  Note
t  To avoid repeat repairs, proceed as follows if an engine mounting is defective:
t  Renew engine mounting and corresponding bracket.
t  Also renew engine mounting on opposite side; check corresponding bracket and renew if necessary.
Special tools and workshop equipment required

t  Support bracket -10 - 222 A-
  W00-0225

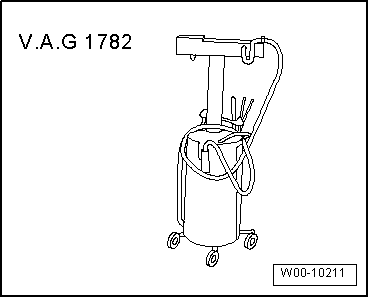

t  Used oil collection and extraction unit -V.A.G 1782-
  W00-10211
Removing
–  Remove engine cover panel -arrows-.
  A10-11504

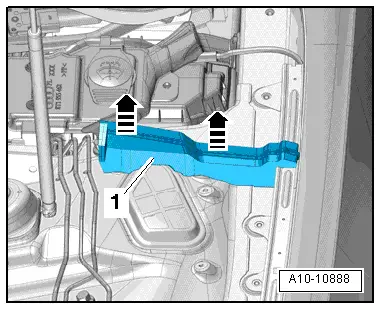

–  Pull off foam wedge -1- on both sides of vehicle -arrows-.
  A10-10888
–  Set up support bracket -10 - 222 A- top edges of body flanges (left and right) as illustrated.
–  Engage spindles -10 - 222 A /11- at engine lifting eyes (left and right).
–  Partly take up weight of engine with spindles.
  A10-11506

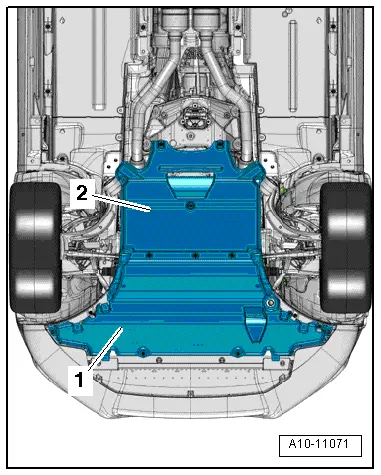

–  Remove noise insulation panels -1- and -2- → Rep. gr.66.
–  Remove front wheel housing liner on relevant side → Rep. gr.66.
  A10-11071
Engine mounting (left-side):
–  Remove poly V-belt → Chapter.
  Caution
Danger of damage to refrigerant lines and hoses.
Do NOT stretch, kink or bend refrigerant lines and hoses.

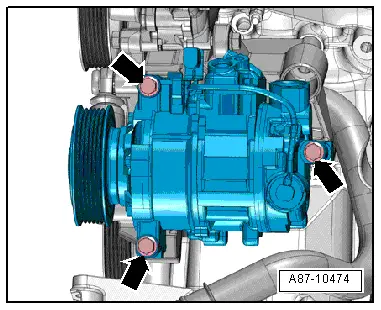

–  Remove bolts -arrows-, detach air conditioner compressor from bracket and tie up.
  A87-10474

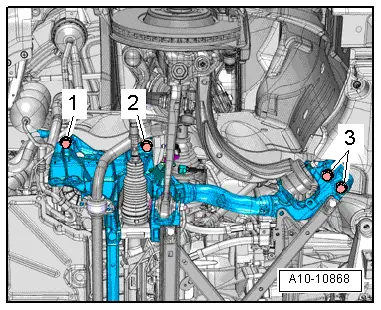

–  Remove bolt -2- for subframe (left-side).
  Note
Bolts -1- and -3- on left side and all bolts for subframe on right side remain fitted.
  A10-10868
Engine mounting (right-side):

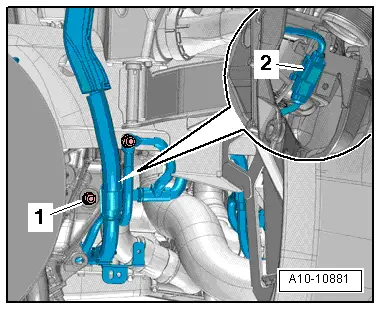

–  Unscrew nut -1- and detach bracket with electrical connector from subframe.
Continuation for both sides:
–  Unplug electrical connectors -2- for electrohydraulic engine mounting solenoid valves -N144-/-N145- on both sides and move wiring clear.
  A10-10881

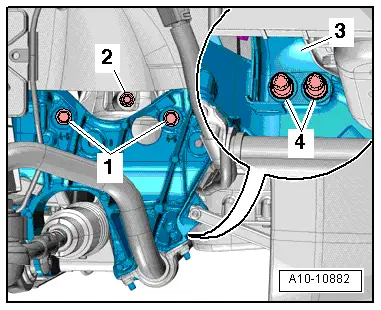

–  Remove bolts (left and right) -1, 2, 4- and place retaining plate -3- to one side.
  A10-10882

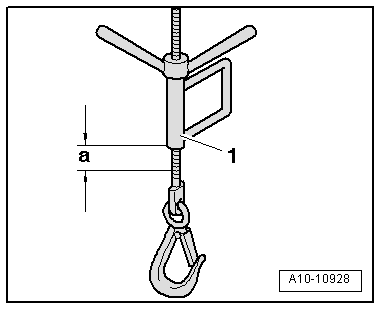

–  Using spindle -10 - 222 A /11--item 1-, raise engine through distance -a- on corresponding side.
l  Distance -a- = approx. 20 mm.
–  Detach engine mounting on relevant side.
Installing
Installation is carried out in the reverse order; note the following:
l  Tightening torques → Chapter „Assembly mountings - exploded view“
  Note
Renew the bolts tightened with specified tightening angle.
–  Secure subframe → Rep. gr.40.
–  Electrical connections and routing → Current flow diagrams, Electrical fault finding and Fitting locations.
–  Install air conditioner compressor → Rep. gr.87.
–  Install poly V-belt → Chapter.
–  Install wheel housing liner (front) and noise insulation panels → Rep. gr.66.
  A10-10928
