A4 Mk3

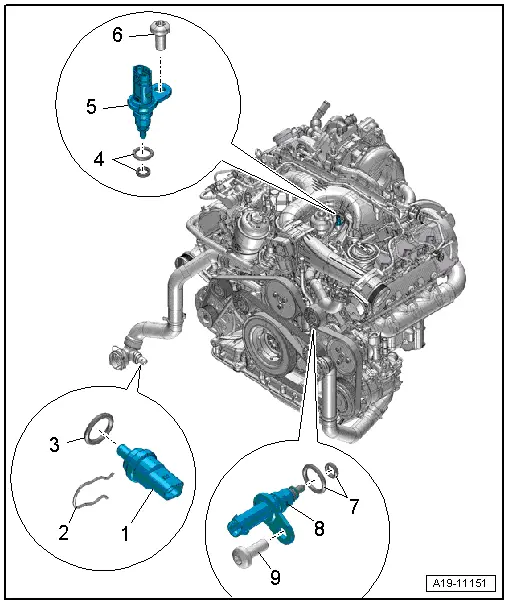

| Coolant temperature senders - exploded view |
| 1 - | Radiator outlet coolant temperature sender -G83- |
| q | Removing and installing → Chapter |
| 2 - | Retaining clip |
| q | Check that it is securely seated |
| 3 - | O-ring |
| q | Renew |
| 4 - | O-rings |
| q | Renew |
| 5 - | Coolant temperature sender -G62- |
| q | Removing and installing → Chapter |
| 6 - | Bolt |
| q | 9 Nm |
| 7 - | O-rings |
| q | Renew |
| 8 - | Temperature sender for engine temperature regulation -G694- |
| q | Removing and installing → Chapter |
| 9 - | Bolt |
| q | 9 Nm |
