| Piston ring clamp, commercially available |
| l
| Engine secured to engine and gearbox support -VAS 6095- → Chapter. |
| –
| Mark installation position and matching of conrod bearing caps to cylinder and to conrods for reinstallation → Fig.. |
| –
| Unbolt conrod bearing caps. |
| –
| Pull out pistons upwards with conrods. |
Note | If piston pin is difficult to remove, heat piston to approx. 60 °C. |
| –
| Take circlip out of piston pin boss. |
| –

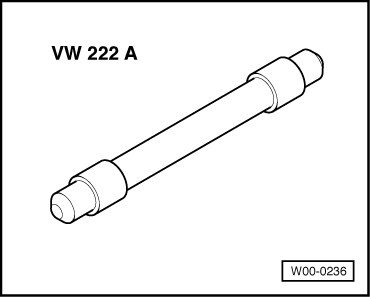

| Use drift -VW 222 A- to drive out piston pin. |
| Installation is carried out in the reverse order; note the following: |
Note | Renew the bolts tightened with specified tightening angle. |
| –
| Oil running surfaces of bearing shells. |
| –
| Install pistons using commercially available piston ring clamp. |
| –
| Install conrod bearing caps according to markings. |
|
|
|
