Removing and installing particulate filter - vehicles with dual clutch gearbox 0B5 >
< Silencers - exploded view
A4 Mk3
Power unit
6-cylinder TDI engine (3.0 ltr. 4-valve common rail - generation II), mechanics
Exhaust system / Silencers
Removing and installing particulate filter - vehicles with manual gearbox/multitronic gearbox 0AW
Removing and installing particulate filter - vehicles with manual gearbox/multitronic gearbox 0AW
Removing and installing particulate filter - vehicles with manual gearbox/multitronic gearbox 0AW
Removing
–
Remove plenum chamber partition panel
→ Rep. gr.50
.
–
Remove front exhaust pipe
→ Chapter
.
–

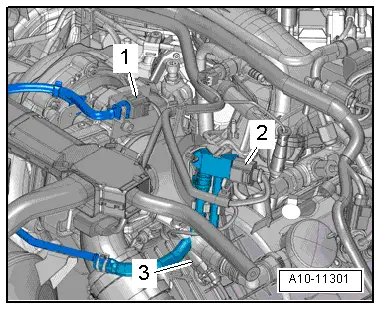

Take electrical connector
-3-
out of bracket, unplug it and move electrical wiring clear.
–
Unplug electrical connector
-2-
, unclip pressure differential sender -G505- from bracket and move clear.
Note
Ignore item marked
-1-
.
–

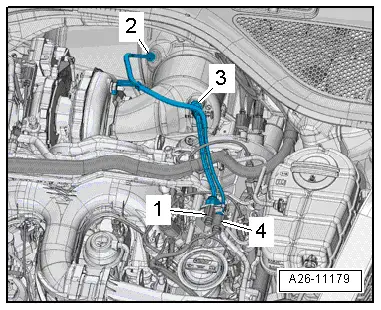

Detach electrical connectors
-1 and 4-
from bracket and unplug.
Note
Disregard items marked
-2 and 3-
.
–
Detach particulate filter.
Installing
Installation is carried out in the reverse order; note the following:
l
Tightening torques
→ Chapter „Silencers - exploded view“
Note
Renew seals, gaskets and self-locking nuts.
–
Electrical connections and routing
→ Current flow diagrams, Electrical fault finding and Fitting locations
.
–
Install front exhaust pipe
→ Chapter
.
–
Install plenum chamber partition panel
→ Rep. gr.50
.
–
After renewing particulate filter, perform
Adaption
in
Guided Functions
→ Vehicle diagnostic tester
.
