Removing knock sensor 1G61
Removing knock sensor 1 -G61-
Removing

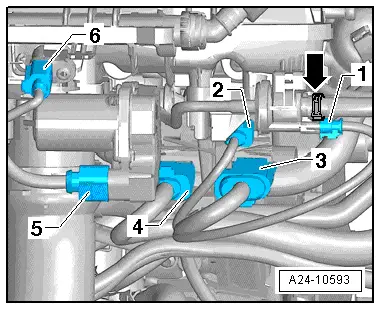

–  Unplug electrical connector -2- at knock sensor 1 -G61-.
–  Remove coolant pump with thermostat → Engine, mechanics; Rep. gr.19.
  Note
Knock sensor 1 -G61- is located below the intake manifold and behind the coolant pump.
–  Unscrew knock sensor 1 -G61-.
Installing
–  Install in reverse order.
l  Tightening torque: refer to exploded view of ignition system → Chapter.
  A24-10593
