Removing and installing engine cover panel
Removing and installing engine cover panel
Removing

–  Pull engine cover panel carefully off retaining pins. Do not jerk the cover panel away, and do not try to pull on one side only.
Installing
–  To avoid damage, do not strike the engine cover panel with your fist or with any kind of tool.

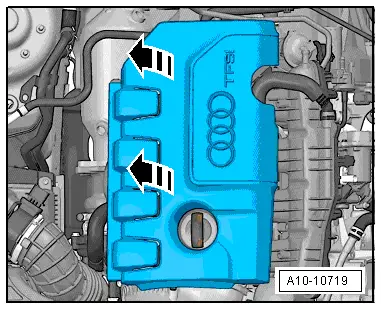

–  Position engine cover panel on engine (note locations of oil filler neck and oil dipstick).
–  Press engine cover panel with both hands into the rubber grommets.
  A10-10719
