A4 Mk3

Removing and installing regulating valve
Removing and installing regulating valve
Special tools and workshop equipment required
t  Drip tray

Removing
–  Observe safety precautions → Chapter.
–  Observe rules for cleanliness → Chapter.
–  Remove underbody trim panels (right-side) → Rep. gr.66.

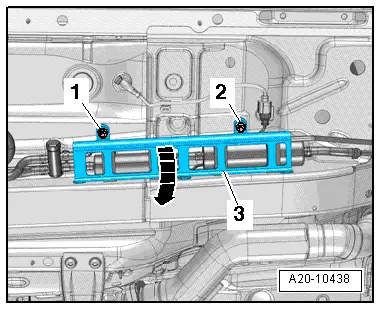

–  Remove nuts -1- and -2-.
–  Move bracket -3- downwards -arrow-, disengage from body and detach.
  WARNING
The fuel can become extremely hot. This can cause injuries.
t  In extreme cases the fuel lines and the fuel can reach a temperature of 100 °C. Allow the fuel to cool down before disconnecting the lines - danger of scalding.
t  Wear protective gloves.
t  Wear safety goggles.
Risk of injury - fuel system operates under high pressure.
To reduce the pressure in the fuel system, wrap a clean cloth around the connection and carefully loosen the connection.
  A20-10438
–  Place drip tray under regulating valve.

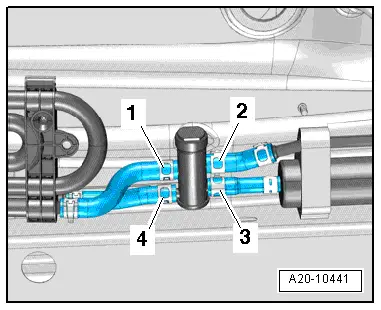

–  Detach fuel hoses -1 ... 4- and regulating valve.
  Note
Illustration shows vehicle with 2.7 ltr. engine.
Installing
Installation is carried out in the reverse order; note the following:
l  Tightening torque → Chapter „Fuel filter and supplementary fuel pump -V393- - exploded view“
l  Allocation of fuel hoses and flow direction are marked with „VL“ (supply), „RL“ (return) and arrows on regulating valve.
  A20-10441
