Removing and installing engine speed sender -G28-
Removing
–

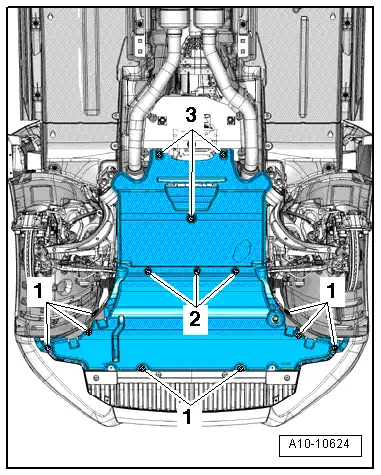

Release fasteners
-1, 2, 3-
and remove noise insulation panels.
–

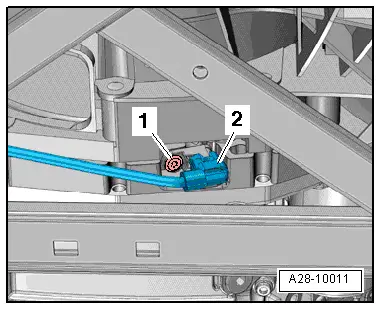

Unplug electrical connector
-2-
.
–
Unscrew bolt
-1-
and remove engine speed sender -G28-.
Installing
Install in reverse order.
l
Tightening torques: refer to overview of fitting locations
→ Chapter
.
