| Tool inserts -V.A.G 1331/2- |
Note | t
| Tightening union nut on high-pressure pump → Fig. |
| t
| The connections of the high-pressure pipes must not be damaged. |
| t
| Do not bend the high-pressure pipes out of shape. |
| t
| Do NOT bend open retaining clamps for fuel pipe. |
| t
| If one of the retaining clamps has been bent open or the fuel pipe has to be renewed, the retaining clamps must also be renewed. |
| –
| Lubricate threads of union nuts with fuel. |
| –
| Hand-tighten union nuts on high-pressure pipes (ensure that pipes are not under tension). |
| –

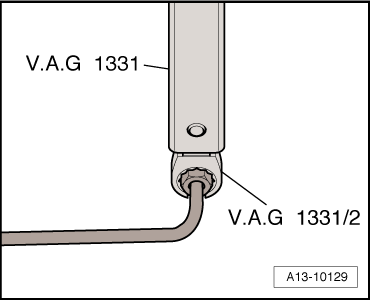

| To tighten high-pressure pipe on fuel rail, use torque wrench -V.A.G 1331- with open-end ring spanner (tool insert -V.A.G 1331/2-). |
| t
| Tightening torque for union nut on high-pressure pipe: 25 Nm |
| –
| Do not install retaining tabs until high-pressure pipes have been tightened. |
| –
| Check fuel system for leaks. |
|
|
|
