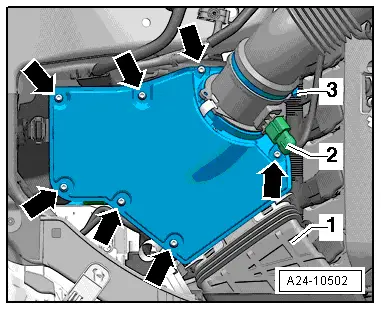

| Unplug electrical connector at air mass meter -G70--2-. |
| –
| Open hose clip -3- at air hose and disconnect air hose from air mass meter -G70-. |
| –
| Open both clamps at air mass meter -G70-. |
| –
| Carefully pull air mass meter -G70- out of guide on air cleaner housing. |
| To ensure the proper function of the air mass meter -G70- it is important to observe the following notes and instructions. |
Note | t
| If the air filter element is very dirty or wet, dirt or water could reach the air mass meter -G70- and affect the air mass value. This would lead to loss of power, since a smaller injection quantity is calculated. |
| t
| Always use genuine part for air filter element. |
| t
| Use a silicone-free lubricant when installing the intake hose. |
| t
| Secure all hose connections with the correct type of hose clips (same as original equipment) → Parts catalogue |
| –
| Check for salt residue, dirt and leaves in air mass meter -G70- and air intake hose (engine intake side). |
| –
| Check for dirt in air duct leading to air filter element. If necessary, clean salt residue, dirt and leaves out of air cleaner housing (top and bottom sections); wash out or use a vacuum cleaner as required. Removing and installing air cleaner → Chapter |
| –
| If air filter element has been removed, clean water drain hose in air cleaner (bottom section). |
| –
| Align O-ring in slot on air cleaner housing and carefully push air mass meter -G70- into air cleaner housing. |
Note | –
| Fit air hose and tighten hose clamp. |
| –
| Plug electrical connector back onto air mass meter -G70-. |
|
|
|
