A4 Mk3

Removing and installing subframe shield
Removing and installing subframe shield

Removing
–  Remove cross brace → Chapter.

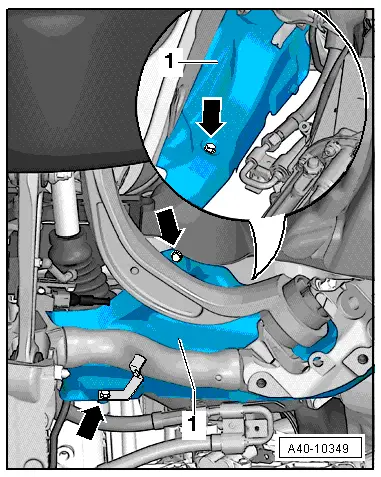

–  Remove bolts -arrows-.
–  Detach subframe shield -1- towards inside and remove.
Installing
Installation is carried out in the reverse sequence. Note the following points:
l  Insert square nuts → Item in slots on casting before installing subframe shield.
Tightening torques → Chapter „Exploded view of subframe, cross brace, anti-roll bar, coupling rod, subframe shield“
