Removing and installing wheel bearing housing - four-wheel drive vehicles > < Wheel bearing housing, wheel bearing unit, shock absorber - four-wheel drive vehicles

A4 Mk3

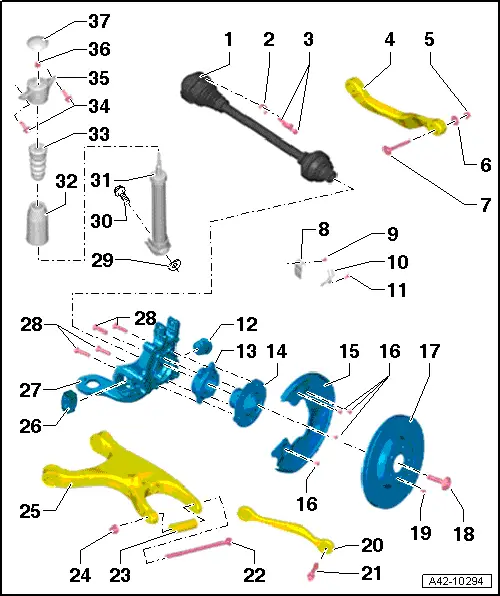

Exploded view of wheel bearing housing, wheel bearing unit, shock absorber for coil springs - four-wheel drive vehicles

Exploded view of wheel bearing housing, wheel bearing unit, shock absorber for coil springs - four-wheel drive vehicles
1 - Drive shaft
q   Different versions available → Electronic parts catalogue
2 - Lock plate
3 - Bolt
q   Tightening torque → Chapter
4 - Upper transverse link
5 - Nut
q   95 Nm
q   Always renew if removed
q   Vehicle must be in unladen position when tightening → Chapter
6 - Eccentric washer
7 - Bolt
8 - Bracket
q   For brake hose, brake caliper wiring harness and wiring harness for rear speed sensor
9 - Bolt
q   10 Nm
10 - Speed sender (rear)
11 - Bolt
q   9 Nm
12 - Bonded rubber bush
q   Cannot be renewed separately
13 - Ball bearing
  Caution
Avoid dirtying or damaging the seal when laying it down or placing it in storage → Fig..
q   Removing and installing wheel bearing unit → Chapter
q   Servicing wheel bearing unit → Chapter
14 - Wheel hub
  Caution
Avoid dirtying or damaging the seal when laying it down or placing it in storage → Fig..
q   Removing and installing wheel bearing unit → Chapter
q   Servicing wheel bearing unit → Chapter
15 - Splash plate for brakes
16 - Bolt
q   10 Nm
17 - Brake disc
18 - Flange bolt
q   200 Nm +180°
q   Always renew if removed
19 - Bolt
q   5 Nm
20 - Track rod
q   Different versions (aluminium and steel); for correct version, refer to → Electronic parts catalogue
q   Mixed installation is not permissible
21 - Bolt
q   90 Nm +90°
q   Always renew if removed
q   Vehicle must be in unladen position when tightening → Chapter
22 - Bolt
q   120 Nm +360°
q   Always renew if removed
q   Vehicle must be in unladen position when tightening → Chapter
  Note
Wheel alignment must be checked if bolt is removed.
23 - Spacer
q   Always renew if removed
24 - Nut
q   Always renew if removed
  Caution
The bolt connection must not be tightened by the nut.
  Note
Wheel alignment must be checked if nut is slackened.
25 - Lower transverse link
26 - Bonded rubber bush
q   Renewing → Chapter
27 - Wheel bearing housing
q   Removing and installing → Chapter
28 - Bolt
q   80 Nm +90°
q   Always renew if removed
29 - Washer
q   For corrosion protection
q   Always use
30 - Bolt
q   150 Nm +180°
q   Always renew if removed
q   Vehicle must be in unladen position when tightening → Chapter
31 - Shock absorber
q   Removing and installing → Chapter
32 - Protective sleeve
33 - Bump stop
34 - Bolt
q   50 Nm +45°
q   Always renew if removed
35 - Shock absorber mounting (top)
q   Installation position → Chapter
36 - Nut
q   35 Nm
q   Always renew if removed
37 - Protective cap

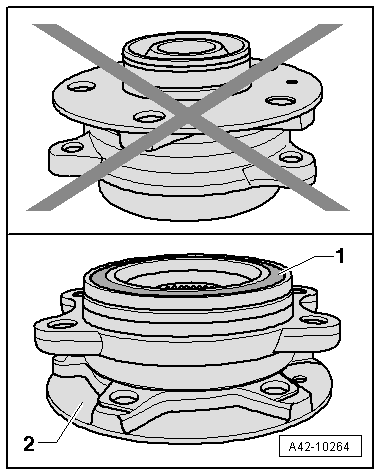

Avoiding dirtying or damaging the seal when laying it down or placing it in storage
t  Wheel bearing -1- must always face upwards.
t  Always put down the wheel bearing unit with the wheel hub -2- facing downwards.
The same procedure applies to the wheel bearing without wheel hub.
  A42-10264
