Renewing bonded rubber bush for wheel bearing housing - four-wheel drive vehicles
Renewing bonded rubber bush for wheel bearing housing - four-wheel drive vehicles
Special tools and workshop equipment required

t  Thrust plate -VW 401-
  W00-0135

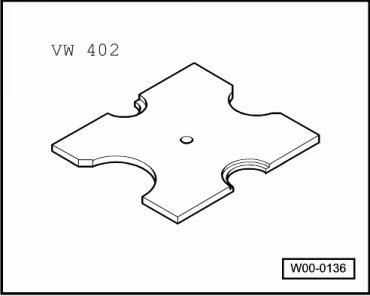

t  Thrust plate -VW 402-
  W00-0136

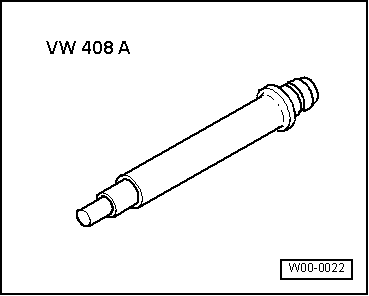

t  Press tool -VW 408 A-
  W00-0022
t  Press tool -VW 411-
  W00-0138

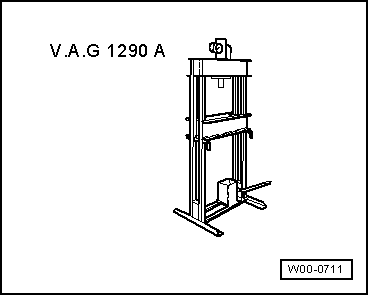

t  Workshop press -V.A.G 1290 A-
  W00-0711

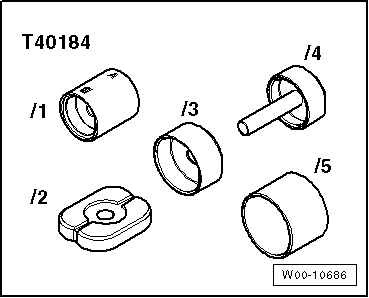

t  Assembly tool -T40184-
  W00-10686
Removing front bonded rubber bush
–  Remove wheel bearing housing → Chapter.
To press out front bonded rubber bush, thrust plate -T40184/2--3- must be positioned on front bonded rubber bush so that studs -2- engage in grooves -4-.
  A42-10293

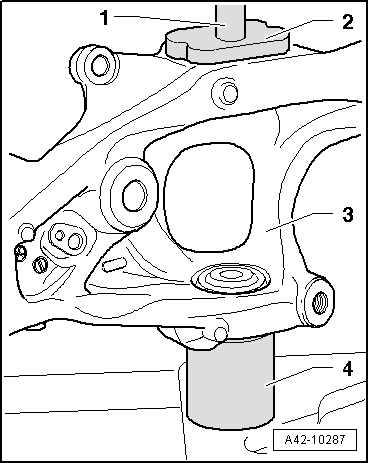

–  Apply tools to front bonded rubber bush and wheel bearing housing as shown in illustration.
  Note
When positioning the wheel bearing housing on the sleeve -T40184/1-, make sure the rubber sleeve of the rear bonded rubber bush is not damaged / moved.
1 - Press tool -VW 411-
2 - Thrust plate -T40184/2-
3 - Wheel bearing housing
4 - Sleeve -T40184/1- Side with groove must face wheel bearing housing. If bonded rubber bush has a „positioning lug“, this fits into groove on sleeve -T40184/1-.
–  Press out front bonded rubber bush.
  A42-10287
Installing front bonded rubber bush
–  Insert front bonded rubber bush into sleeve -T40184/3-. Thin collar -arrow- must face upwards.
To press in front bonded rubber bush, position thrust plate -T40184/2--3- on front bonded rubber bush so that studs -2- engage in grooves -4-.
  A42-10293

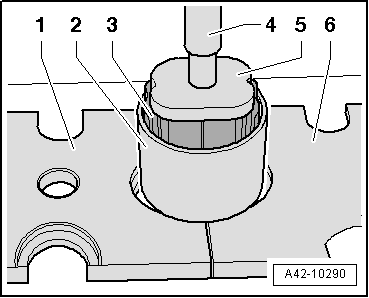

–  Press in front bonded rubber bush until it makes contact with thrust plates -1- and -6-.
1 - Thrust plate -VW 401-. Position as shown in illustration.
2 - Sleeve -T40184/3-
3 - Bonded rubber bush (front)
4 - Press tool -VW 408 A-
5 - Thrust plate -T40184/2-
6 - Thrust plate -VW 402-. Position as shown in illustration.
–  Then pull thrust plates -1- and -6- apart slightly.
  A42-10290

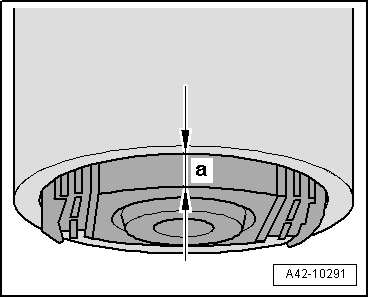

–  Press front bonded rubber bush approx. 2 mm out of sleeve -T40184/3-.
   a = 2 mm
–  Detach press tool -VW 408 A- and insert press tool -VW 411-.
–  Position wheel bearing housing on workshop press -V.A.G 1290 A-.
  A42-10291

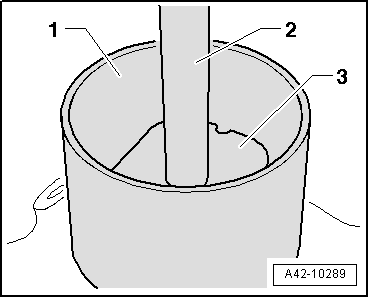

–  Position front bonded rubber bush (not visible in illustration), thrust plate -3- and sleeve -1- on wheel bearing housing.
1 - Sleeve -T40184/3-
2 - Press tool -VW 411-
3 - Thrust plate -T40184/2-. Note installation position on front bonded rubber bush.
  A42-10289

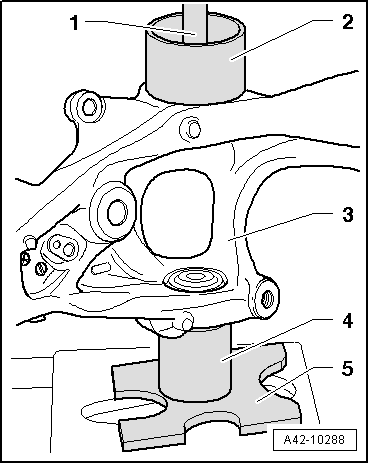

–  Apply tools to front bonded rubber bush and wheel bearing housing -3- as shown in illustration.
  Note
When positioning the wheel bearing housing on the sleeve -T40184/1-, make sure the rubber sleeve of the rear bonded rubber bush is not damaged / moved.
–  Slowly press in front bonded rubber bush (not visible in illustration) until sleeve -2- can be lifted off.
1 - Press tool -VW 411-
2 - Sleeve -T40184/3-
3 - Wheel bearing housing
4 - Sleeve -T40184/1- Side with groove must face wheel bearing housing. If bonded rubber bush has a „positioning lug“, this fits into groove on sleeve -T40184/1-.
5 - Thrust plate -VW 402-
  A42-10288

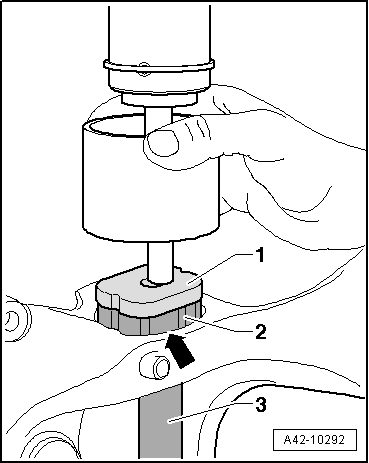

Item -3- can be disregarded.
–  Slowly press in front bonded rubber bush -2- until it is flush with edge of wheel bearing housing -arrow-.
–  Install wheel bearing housing → Chapter.
  A42-10292
