Removing and installing airbag steering wheel > < Airbag steering wheel

A4 Mk3

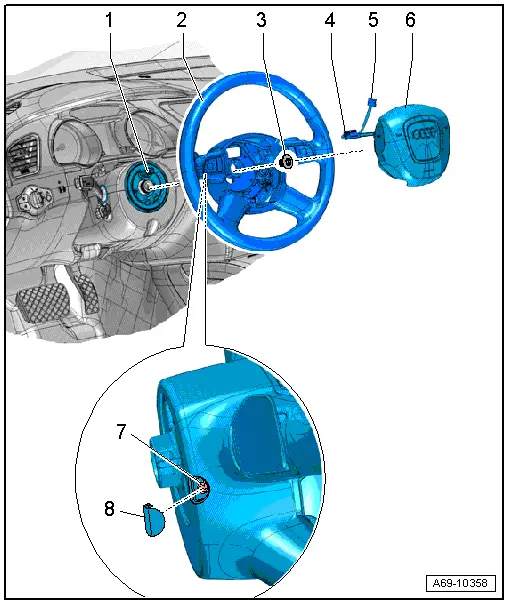

Exploded view of airbag steering wheel

Exploded view of airbag steering wheel
1 - Airbag coil connector and return ring with slip ring -F138-
q   Removing and installing → Rep. gr.94
2 - Steering wheel
q   Removing and installing → Chapter
3 - Bolt
q   50 Nm
q   Always renew if removed
4 - Electrical connector
5 - Electrical connector
6 - Driver's airbag unit
q   Removing and installing → Rep. gr.69
  WARNING
Observe safety precautions for working on airbags → Rep. gr.69.
7 - Bolt
q   Tightening torque → Rep. gr.69
8 - Trim cap
