A4 Mk3

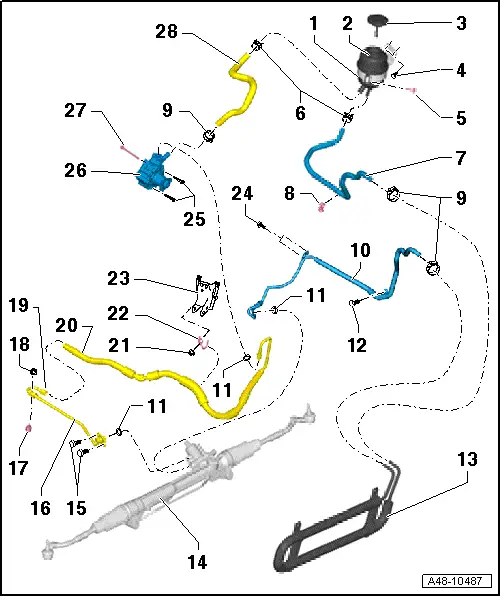

Exploded view (vehicles with 4-cylinder diesel engine, vehicles with dynamic steering) |
There is no provision for repairing the power steering pump. If problems are reported, trace the fault by means of a pressure test and a leakage test. Renew the power steering pump if there is a fault. |
Note
t | Always check steering system for leaks if fluid level is low in reservoir. |
t | If leakage is visible at the pipe connections first tighten connections and wipe dry, then check for leaks again. |
t | The power steering pump is supplied without fluid filling. Prior to installation, the pump must therefore always be filled with hydraulic fluid and turned by hand. Otherwise, there is a possibility of pump damage or noise while driving. |
1 - | Securing strap |
q | Securing to body → Chapter |
2 - | Reservoir |
q | Note correct installation position → Chapter |
q | Installation position of hoses at fluid reservoir → Chapter |
3 - | Cap with dipstick |
q | Checking fluid level → Chapter |
4 - | Bolt |
q | 9 Nm |
5 - | Bolt |
q | 9 Nm |
6 - | Spring-type clip |
q | Use hose clip pliers -V.A.G 1921- for removal and installation |
7 - | Return hose |
q | From hydraulic fluid cooler to reservoir |
q | Securing to longitudinal member → Chapter |
q | Note correct position on reservoir → Chapter |
q | Note correct position on hydraulic fluid cooler → Chapter |
8 - | Clip |
9 - | Hose clip |
q | Tighten using hose clip pliers -V.A.G 1275- |
q | Always renew if removed |
10 - | Return line |
q | From power steering box to hydraulic fluid cooler |
Caution
|
q | Securing to subframe → Chapter |
q | Note correct position on hydraulic fluid cooler → Chapter |
q | Installation position at line connection → Chapter |
11 - | Seal |
q | Always renew if removed |
12 - | Bolt |
q | 9 Nm |
13 - | Hydraulic fluid cooler |
q | Clipped onto condenser → Chapter |
q | Removing and installing → Chapter |
14 - | Power steering box |
q | For correct version refer to → Electronic parts catalogue |
q | Removing and installing → Chapter |
15 - | Bolt |
q | 20 Nm |
16 - | Pressure line |
q | From power steering pump to power steering box |
Caution
|
q | Securing to cross brace → Chapter |
q | Installation position of line connection → Chapter |
17 - | Rubber mounting |
q | 6 Nm |
18 - | Nut |
q | 6 Nm |
19 - | Union nut |
q | 40 Nm |
q | Installation position of line connection → Chapter |
20 - | Pressure line |
q | From power steering pump to power steering box |
Caution
|
q | Tightening torque of union nut: 38 Nm |
q | Securing to engine mounting → Chapter |
q | Installation position of line connection → Chapter |
21 - | Nut |
q | 9 Nm |
22 - | Retainer |
23 - | Connector |
q | For engine mounting |
24 - | Bolt |
q | 9 Nm |
25 - | Bolt |
q | 25 Nm |
26 - | Power steering pump |
q | For correct version refer to → Electronic parts catalogue |
q | Fill with hydraulic fluid before installing |
q | Checking delivery pressure → Chapter |
q | Removing and installing → Chapter |
27 - | Bolt |
q | 25 Nm |
28 - | Suction hose |
q | Note correct position on reservoir → Chapter |
q | Note correct position on power steering pump → Chapter |
