Removing and installing hydraulic fluid cooler (vehicles with dynamic steering) Special tools and workshop equipment required

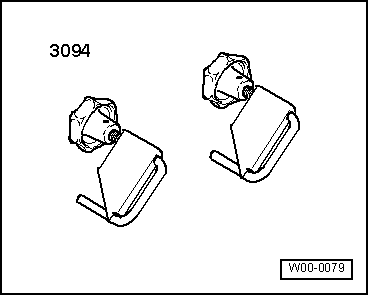

t  Hose clamps up to 25 mm Ø -3094-

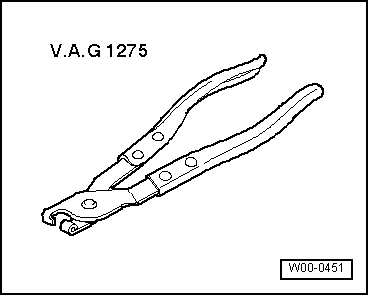

t  Hose clip pliers -V.A.G 1275-

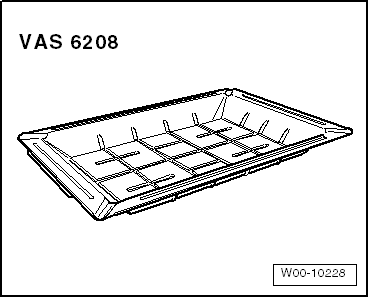

t  Drip tray for workshop hoist -VAS 6208-

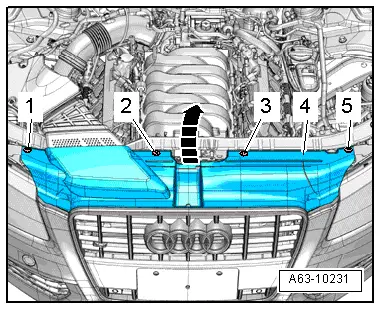

Removing –  Remove bolts -1, 2, 3, 5- to detach cover -4- for lock carrier (front) → Rep. gr.50. –  Lift cover -4- for lock carrier -arrow- and unhook at radiator grille → Rep. gr.50.

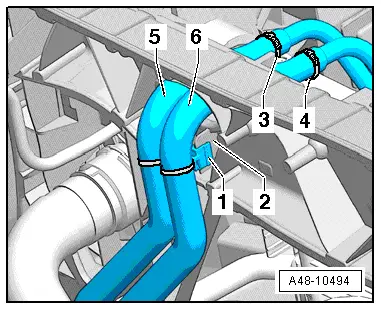

–  Clamp off hydraulic lines -5- and -6- with hose clamps up to Ø 25 mm -3094-.

–  Remove hose clips -3- and -4-. –  Disconnect hydraulic lines -5- and -6- from hydraulic fluid cooler.

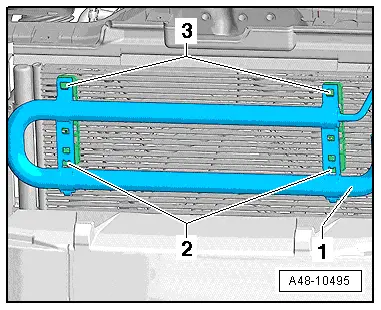

–  Release retainers -3-, tilt top section of hydraulic fluid cooler -1- forwards slightly and lift cooler out of brackets -2- at air conditioner condenser. Installing Installation is carried out in the reverse sequence. Note the following points:

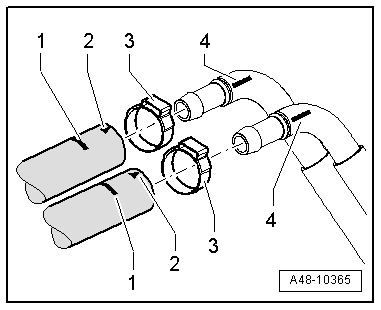

–  Markings -2- on hoses should face the top (»12 o'clock« position).   Caution Hold pipes -4- when attaching hoses -1-. –  Fill up with hydraulic fluid. –  Clean off any fluid spills. –  Bleed steering system → Chapter. –  Check hydraulic fluid level → Chapter. –  Check all opened lines for leaks → Chapter. –  Install lock carrier cover (front) → Rep. gr.63.   Note Secure all hose connections with the correct type of hose clips (same as original equipment) → Electronic parts catalogue.
