Connectors on connection for external audio sources (MMI up to week 44/08)

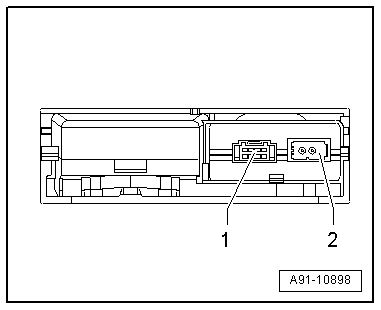

Connection for external audio sources -R199-

1 -	Multi-pin connector, 8-pin (T8aa)

2 -

MOST bus

Note

Contacts which are not listed are not used.

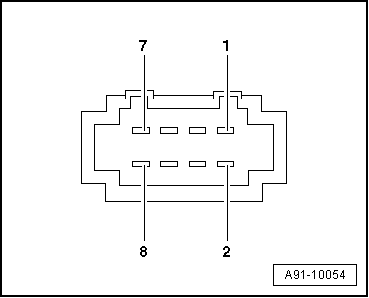

1 - Multi-pin connector, 8-pin (T8aa)

1 -	Terminal 31

2 -	Terminal 30

4 -	Terminal 31

5 -	Open circuit diagnostic lead

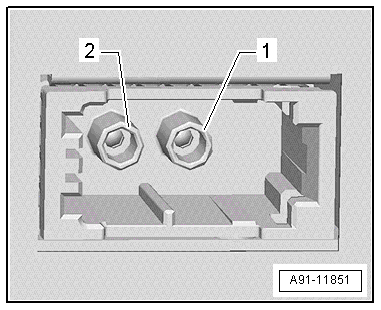

2 - MOST bus

1 -

Input

2 -

Output
