Removing and installing internet access aerialR266
Removing and installing internet access aerial -R266-
The internet access aerial -R266- (WLAN aerial) is located behind the glove box on the air duct.
Removing
–  Remove glove box → General body repairs, interior; Rep. gr.68.
Internet access aerial -R266- is bonded to air duct.

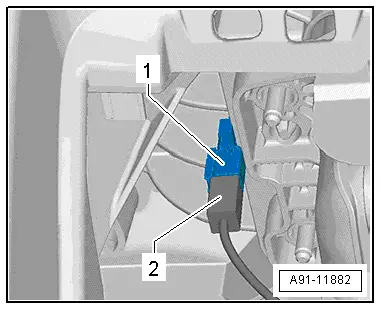

–  Unplug connector -2- at internet access aerial -R266--1-.
–  Use a small screwdriver to remove internet access aerial -R266--1- from bonding area.
Installing
–  Clean bonding area on air duct thoroughly with isopropanol.
–  Remove protective foil on bonding surface of internet access aerial -R266-.
–  Press and hold internet access aerial -R266--1- against bonding area on air duct for about 10 seconds.
–  Continue installation in reverse sequence.
  A91-11882
