A4 Mk3

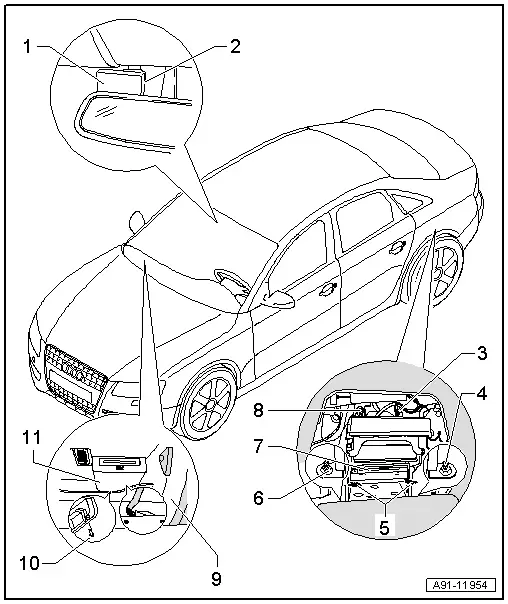

Overview (up to week 44/08) |
1 - | Traffic data aerial -R173- |
q | Removing and installing → Chapter |
2 - | Pin |
3 - | Nut |
q | 5 Nm |
4 - | Nut |
q | 5 Nm |
5 - | Radio release tool -T10057- |
6 - | Nut |
q | 5 Nm |
7 - | Navigation system with CD drive control unit -J401- |
q | Pin assignment (MMI up to week 44/08) → Chapter |
q | Removing and installing (MMI up to week 44/08) → Chapter |
8 - | Nut |
q | 5 Nm |
9 - | Glove box |
10 - | Pin |
11 - | Chip card reader control unit -J676- |
q | Pin assignment (up to week 44/08) → Chapter |
q | Removing and installing → Chapter |
