Removing and installing front mid-range loudspeaker/front bass loudspeaker > < Removing and installing front mid-range and bass loudspeaker/front bass loudspeaker

A4 Mk3

Removing and installing front treble loudspeaker (B+O)
Removing and installing front treble loudspeaker (B+O)
Front left treble loudspeaker -R20- and front right treble loudspeaker -R22- are located in mirror triangles.
The removal and installation procedure is similar for all components.
–  Switch off all electrical equipment.
–  Remove ignition key.
Removing
–  Remove trim panel for treble loudspeaker → General body repairs, interior; Rep. gr.70.

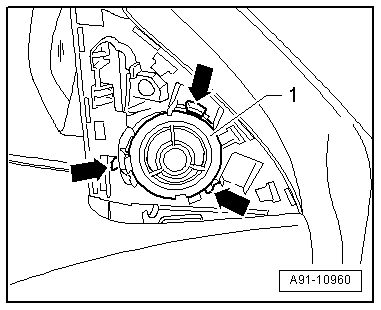

–  Push retaining tabs -arrows- on front left treble loudspeaker -R20--1- outwards and pull out front left treble loudspeaker -R20--1-.
–  Release and unplug connector at front left treble loudspeaker -R20--1-.
Installing
–  Install in reverse sequence of removal.
Exploded view → Chapter
  A91-10960
