A4 Mk3

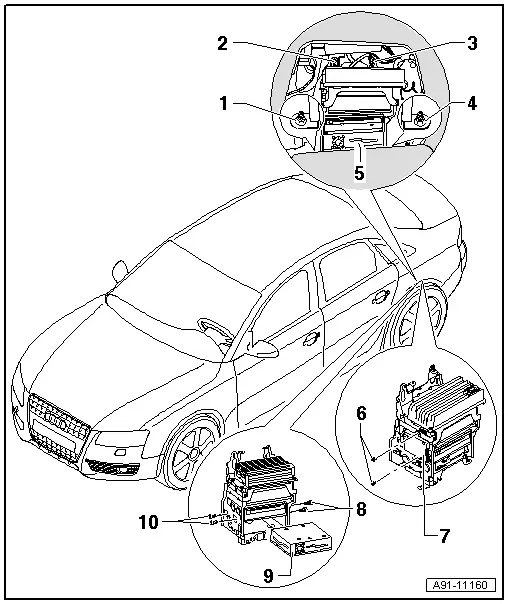

| Overview (up to week 44/08) |
| 1 - | Nut |
| q | 5 Nm |
| 2 - | Nut |
| q | 5 Nm |
| 3 - | Nut |
| q | 5 Nm |
| 4 - | Nut |
| q | 5 Nm |
| 5 - | Infotainment rack |
| 6 - | Bolt |
| q | 4.5 Nm |
| 7 - | TV card reader -R204- |
| q | Removing and installing (up to week 44/08) → Chapter |
| 8 - | Bolt |
| q | 2 Nm |
| 9 - | TV tuner -R78- |
| q | Pin assignment → Chapter |
| q | Removing and installing (up to week 44/08) → Chapter |
| 10 - | Bolt |
| q | 2 Nm |
