A4 Mk3

Removing and installing cigarette lighter illumination bulbL28
Removing and installing cigarette lighter illumination bulb -L28-

Removing
–  Remove front ashtray → Rep. gr.68.

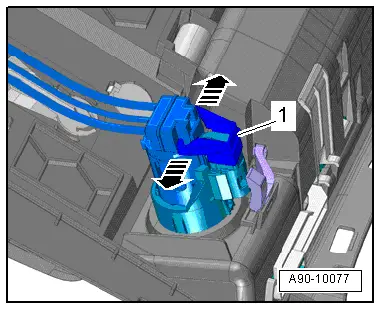

–  Pry off cover -1- from top of cigarette lighter illumination bulb -L28--arrows-.
  A90-10077

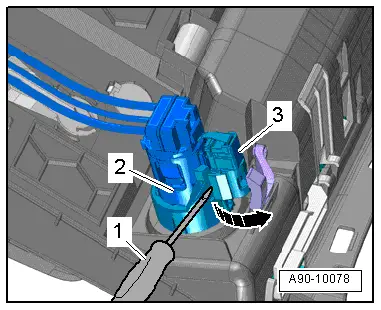

–  Using a small screwdriver -1-, carefully pry cigarette lighter illumination bulb -L28--item 3- off cigarette lighter -U1--item 2- in direction of -arrow-.
Installing
Installation is carried out in the reverse order; note the following:
–  Install front ashtray → Rep. gr.68.
  A90-10078
