Removing and installing contact sensor for front left/front right exterior door handle G605/G606
Removing and installing contact sensor for front left/front right exterior door handle -G605-/-G606-

Removing
–  Remove exterior door handle → Rep. gr.57.
–  Release retaining tabs -arrows A- and take out electrical connector -3-.
–  Use a small screwdriver to carefully release retaining hooks -arrows B- and detach wiring guide.
  Note
Disregard -items 1, 2-.
  A57-10477

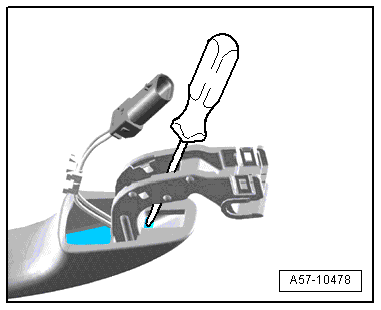

–  Apply a large, strong screwdriver at exterior door handle, as shown in illustration.
–  Exert force to press contact sensor for exterior door handle towards front out of retainer at exterior door handle.
–  Pull contact sensor for front exterior door handle out of exterior door handle.
Installing
Installation is carried out in the reverse order; note the following:
–  Press in contact sensor for front exterior door handle so that it engages audibly.
–  Install exterior door handle → Rep. gr.57.
  A57-10478
