Removing and installing luggage compartment aerial for entry and start authorisationR137
Removing and installing luggage compartment aerial for entry and start authorisation -R137-

Removing
–  Fold open luggage compartment floor.
–  On some versions, the mounting for tool kit must be removed.
–  Avant: Remove spare wheel well lining → Rep. gr.70.

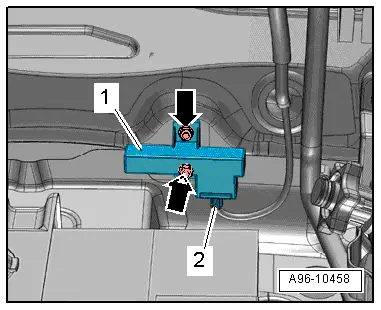

–  Remove nuts -arrows-.
–  Detach luggage compartment aerial for entry and start authorisation -R137--item 1-.
–  Unplug electrical connector -2-.
Installing
l  Tightening torque → Fig.
Installation is carried out in the reverse order; note the following:
–  Avant: Install spare wheel well lining → Rep. gr.70.
  A96-10458
