Removing and installing lane change assist warning lamp in exterior mirror K233/K234 - vehicles from 06.2009 onwards
Removing and installing lane change assist warning lamp in exterior mirror K233/K234 - vehicles from 06.2009 onwards
Removing and installing lane change assist warning lamp in exterior mirror -K233-/-K234- - vehicles from 06.2009 onwards
Removing
–
Remove mirror adjustment unit
→ Rep. gr.66
.
Note
Mask the area around the mirror housing with a soft cloth to protect the paintwork.
–

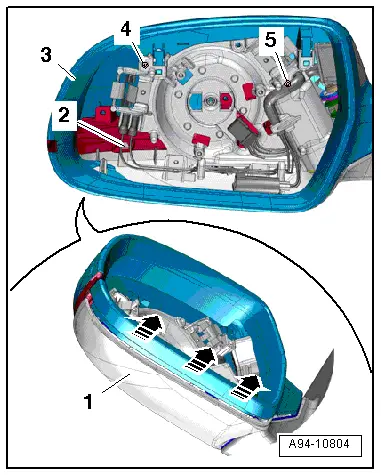

Remove bolts
-4-
and
-5-
.
–
Release retaining clip
-2-
and detach exterior mirror housing
-3-
from cover
-1-
-arrows-
.
–

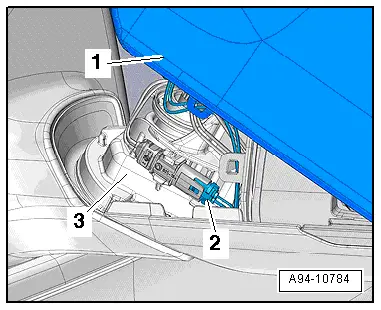

Only pull out exterior mirror housing
-1-
until electrical connector becomes visible.
–
Unplug electrical connector
-2-
at front side of mounting
-3-
for mirror adjustment unit.
–
Lift off exterior mirror housing
-2-
and unplug electrical connector
-3-
.
Note
Disregard
-items 1, 4, 5-
and
-arrow-
.
–
Release retainers
-arrows A-
and press lane change assist warning lamp
-1-
out of exterior mirror housing
-2-
-arrow B-
.
Installing
Installation is carried out in the reverse order; note the following:
Note
Warning lamp for lane change assist in exterior mirror must be replaced completely with a new unit if an LED is defective.
–
Install exterior mirror housing
→ Rep. gr.66
.
