Removing and installing switch panel in centre console - vehicles equipped with MMI basic
Removing and installing switch panel in centre console - vehicles equipped with MMI basic

Removing
–  Remove cover for centre console → Rep. gr.68.

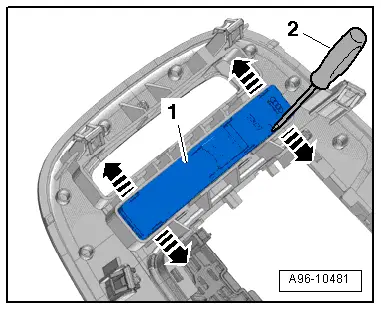

–  Carefully release retaining hooks -arrows- using a small screwdriver -2-.
–  Press switch panel -1- out of switch mounting.
Installing
Installation is carried out in the reverse order; note the following:
–  Press switch panel into switch housing until catch engages with a click.
–  Install cover for centre console → Rep. gr.68.
  A96-10481
