Removing and installing dash panel vent illumination bulb (left and right) L67/L69
Removing and installing dash panel vent illumination bulb (left and right) -L67-/-L69-

Removing
–  Remove appropriate dash panel vent → Rep. gr.70.

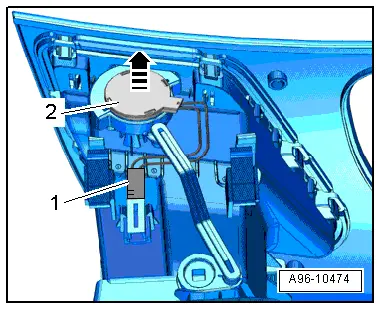

–  Release retaining clips and detach electrical connector -1- on dash panel vent.
–  Using a small screwdriver, carefully lever housing -2- for LED off upwards -arrow-.
–  Detach LED for dash panel vent.
Installing
Installation is carried out in the reverse order; note the following:
–  Install dash panel vents → Rep. gr.70.
  A96-10474
