Removing and installing glove compartment light switchE26
Removing and installing glove compartment light switch -E26-
Removing
–  Switch off ignition and take out ignition key.
–  Detach fuse holder D -SD- at dash panel (right-side) and move to side → Chapter.

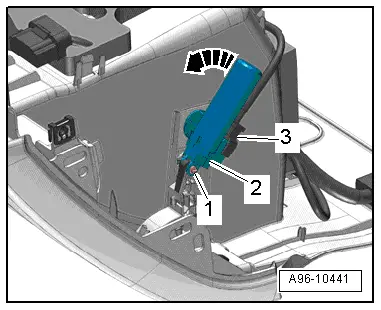

–  Unplug electrical connector -3-.
–  Pull out hinge pin -1-.
–  Release switch -2- in anti-clockwise direction -arrow- and detach.
Installing
Installation is carried out in the reverse order; note the following:
–  Engage fuse holder D -SD- at dash panel on right → Chapter.
  A96-10441
