Removing and installing central locking deadlock function warning lamp -SAFE-K133

Removing and installing central locking deadlock function warning lamp -SAFE- -K133-

Removing

–	Switch off ignition and take out ignition key.

–	Remove door trim (front) → Rep. gr.70.

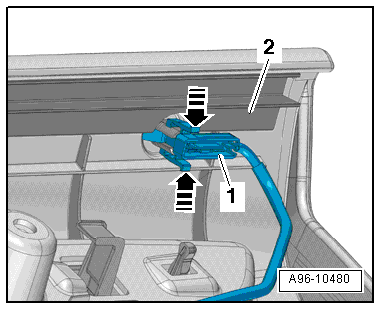

–	Release retaining clips -arrows-.

–	Remove LED -1- for central locking downwards out of door trim -2-.

Installing

Installation is carried out in the reverse order; note the following:

Note

The new central locking deadlock function warning lamp -SAFE- -K133- must be connected with the door trim wiring harness.

–	Cut electrical wiring and re-connect with new wiring for central locking deadlock function warning lamp -SAFE- -K133- → Electrical system general information; Rep. gr.97.

–	Press LED for central locking in so that it engages audibly.

–	Install door trim (front) → Rep. gr.70.
