A4 Mk3

Removing and installing window regulator switches E512/E107
Removing and installing window regulator switches -E512-/-E107-

Removing
–  Switch off ignition and take out ignition key.

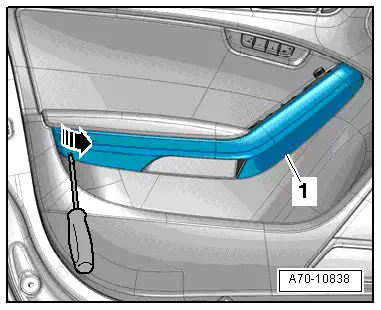

–  Insert screwdriver in hole at bottom of trim -1-.
–  Starting at rear, carefully prise trim off door trim -arrow-.
  A70-10838

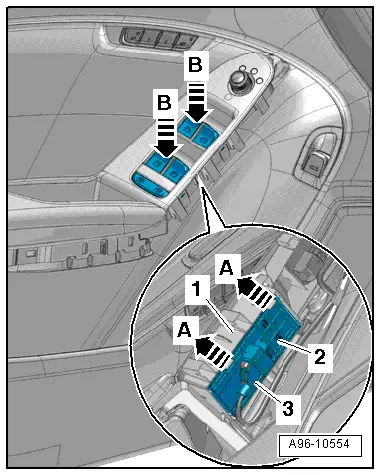

–  Unplug electrical connector -3-.
–  Carefully pull retaining tabs to one side -arrow A-.
–  Press window regulator switch -2- out of switch mounting -1--arrows B-.
Installing
Installation is carried out in the reverse order; note the following:
–  Press window regulator switch into switch mounting until retaining hooks engage.
–  Fit trim for armrest → Rep. gr.70.
  A96-10554
