Removing and installing fog lights
Removing and installing fog lights

Removing
–  Switch off ignition and take out ignition key.
–  Turn light switch to position „0“.
–  Remove air intake grille → Rep. gr.63.

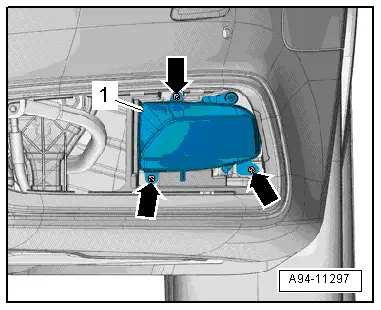

–  Remove bolts -arrows-.
–  Remove fog light -1- from bumper cover.
–  Unplug electrical connector.
Installing
l  Tightening torque → Chapter
Installation is carried out in the reverse order; note the following:
–  Install air intake grille → Rep. gr.63.
–  Adjust fog lights → Chapter.
  A94-11297
