Renewing static cornering light bulb M51/M52
Renewing static cornering light bulb -M51-/-M52-

Removing
–  Right-side: remove air cleaner housing → Rep. gr.23 or → Rep. gr.24.

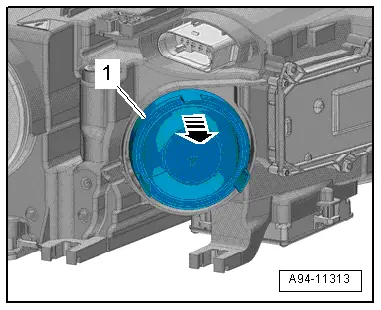

–  Pull housing cover -1- off headlight housing -arrow-.
  A94-11313
–  Remove bulb -1- from spring clips -arrows-.
–  Unplug electrical connector -2- at bulb.
Installing
Installation is carried out in the reverse order; note the following:
–  Plug electrical connector in again and push new bulb beyond resistance of spring clips into housing; do not touch glass part of bulb with bare hands.
–  Close housing cover.
–  Right-side: install air cleaner housing → Rep. gr.23 or → Rep. gr.24.
  A94-11242
