Removing and installing left headlight range control motor -V48-
Special tools and workshop equipment required
t  Protective gloves
t  Safety goggles
t  Carpet knife
Removing
–  Remove headlight housing → Chapter.
  Note
t  Before renewing left headlight range control motor -V48-, headlight housing must be cut open at specified location with a sharp carpet knife.
t  For subsequent sealing of assembly opening, housing cover is available → Electronic parts catalogue
  WARNING
Risk of injury and damage.
t  Wear protective gloves and safety goggles.
t  To prevent damage to electrical wiring in headlight housing, do not cut too deep.

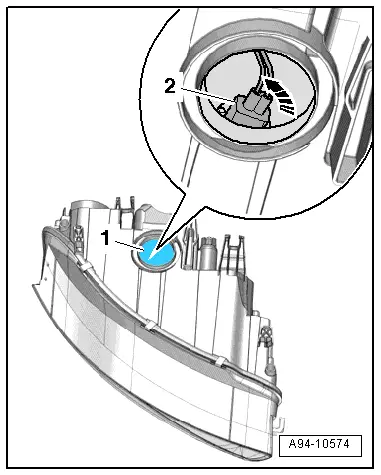

–  Cut dummy cover -1- out of headlight housing using a sharp carpet knife.
  Note
Thoroughly remove metal particles and abrasion (caused by removing dummy cover) from headlight housing.
  A94-10574
–  Cut dummy cover -2- out of headlight housing using a sharp carpet knife.
  Note
Thoroughly remove metal particles and abrasion (caused by removing dummy cover) from headlight housing.

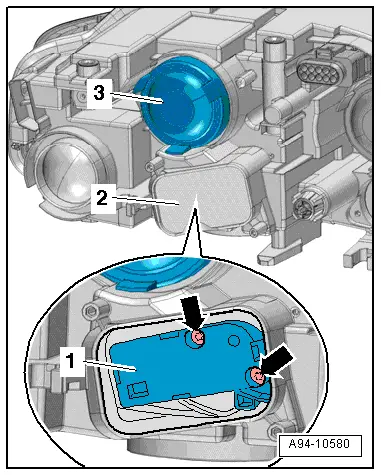

–  Detach cover -3- for dipped beam from headlight housing.
–  Unscrew bolts -arrows- at headlight range control motor -1-.
  A94-10580
–  Pull reflector -4- towards rear and swivel headlight range control motor -3- upwards -arrow-; this disengages ball head -2- on actuator shaft downwards out of ball head mounting -1-.
Installing
l  Tightening torque → Chapter
Installation is carried out in the reverse order; note the following:
–  When inserting, plug in electrical connector.

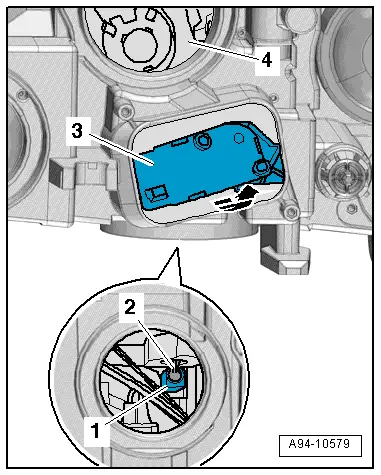

–  Pull reflector towards rear and engage ball head on actuator shaft in ball head mounting of reflector.
  A94-10579

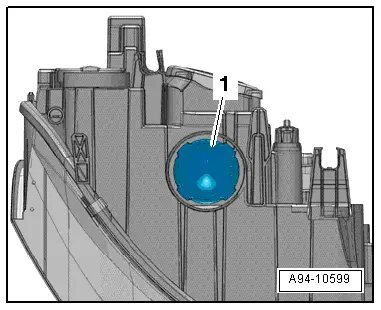

–  Close opening in headlight with housing cover -1- from repair kit → Electronic parts catalogue.
–  Tighten bolts -arrows-.
  A94-10604

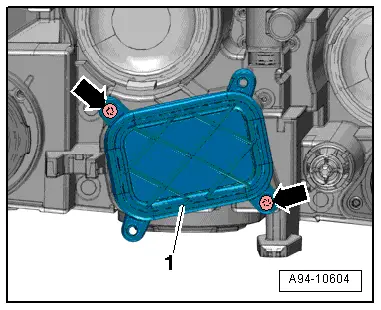

–  Close opening in headlight with housing cover -1- from repair kit → Electronic parts catalogue.
–  Install headlight housing → Chapter.
  A94-10599
