Removing and installing bulb holder
Removing and installing bulb holder

Removing
–  Remove outer tail light cluster → Chapter.

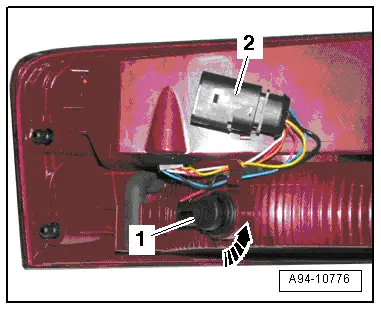

–  Turn bulb holder -1- anti-clockwise -arrow- and pull it out of tail light housing.
–  Take bulb out of bulb holder.
  Note
Disregard -item 2-.
Installing
Installation is carried out in the reverse order; note the following:
–  Insert new bulb in bulb holder, taking care not to touch glass part of bulb with bare hands.
–  Secure bulb holder by turning in clockwise direction.
–  Install outer tail light cluster → Chapter.
  A94-10776
