Removing and installing inner tail light cluster
Removing and installing inner tail light cluster
Special tools and workshop equipment required

t  Removal wedge -3409-
  W00-0016
Removing
–  Switch off ignition and take out ignition key.
–  Turn light switch to position „0“.
–  Lever off cover -1- with removal wedge -3409--arrow-.
  A94-10517
–  Unplug electrical connector -5-.
–  Remove nut -2- and detach retainer bracket (large) -1-.
–  Remove nut -4- and detach retainer bracket (small) -3-.
–  Detach inner tail light from the outside.
Installing
Installation is carried out in the reverse order; note the following:
l  Tightening torque → Chapter
  Note
Ensure that seal between body and tail light housing seals completely.
–  Position inner tail light cluster at outer edge of rear lid.
  A94-10777
–  Fit retainer bracket (small) -3- onto stud on inner tail light and loosely fit nut -4-.
–  Fit retainer bracket (large) -1- onto stud on inner tail light and tighten nuts -2- and -4-.

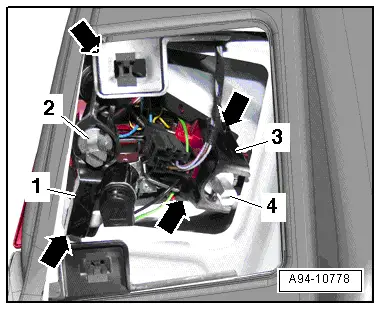

  Note
As the nuts are tightened the retainer brackets become wedged in the rear lid -arrows-.
  A94-10778
