Removing and installing rear parking aid warning buzzerH15
Removing and installing rear parking aid warning buzzer -H15-

Removing
–  Switch off ignition and take out ignition key.
–  Remove belt guide (right-side) → Rep. gr.69.

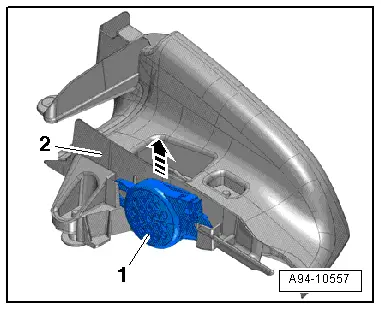

–  Pull out rear parking aid warning buzzer -H15--item 1- at belt guide (right-side) -2- in direction of -arrow-.
Installing
Installation is carried out in the reverse order; note the following:
–  Install belt guide (right-side) → Rep. gr.69.
  A94-10557
