Removing and installing steering column electronics control unitJ527 >
< Exploded view of steering column switch module, electronic ignition lock
A4 Mk3
Vehicle electrics
Electrical system
Lights, lamps, switches outside
Steering column switch module and electronic ignition lock
Removing and installing steering column switch module
Removing and installing steering column switch module
Removing and installing steering column switch module

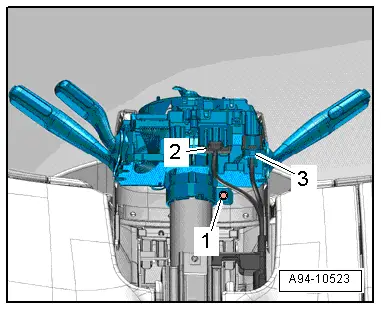

Removing
–
Move steering wheel down and to rear as far as possible, making use of full range of steering column adjuster.
–
Remove driver's airbag
→ Rep. gr.69
.
–
Remove steering wheel
→ Rep. gr.48
.
–
Remove steering column trim
→ Rep. gr.68
.
–
Remove bolt
-1-
.
–
Unplug electrical connector
-2-
.
WARNING
Before disconnecting the electrical connector
-3-
, the mechanic must discharge static by briefly grasping hold of striker plate for door or similar.
–
Unplug electrical connector
-3-
.
–
Press catch
-1-
in direction of
-arrow-
until connector
-2-
disengages.
–
Carefully detach steering column switch module.
Installing
l
Tightening torque
→ Chapter
Installation is carried out in the reverse order; note the following:
–
Install steering column trim
→ Rep. gr.68
.
–
Install steering wheel
→ Rep. gr.48
.
–
Install driver's airbag
→ Rep. gr.69
.
