A4 Mk3

Removing and installing bulb holder
Removing and installing bulb holder

Removing
–  Remove outer tail light cluster → Chapter.

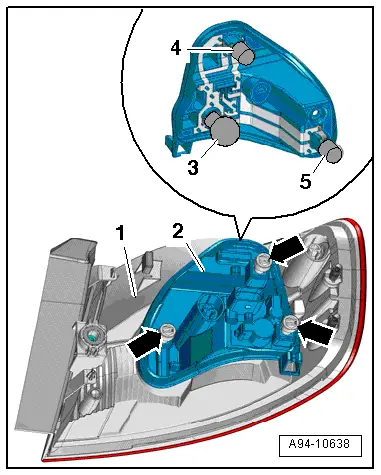

–  Remove nuts -arrows-.
–  Take bulb holder -2- out of tail light -1-.
–  Remove bulbs from bulb holder.
t  Unscrew turn signal bulb -3-.
t  Pull out brake and tail light bulb -4- and reversing light bulb -5-.
Installing
l  Tightening torque → Chapter
Installation is carried out in the reverse order; note the following:
–  Fit new bulbs in bulb holder; do not touch the glass part of the bulb with bare hands.
–  Install outer tail light cluster → Chapter.
  A94-10638
