Removing and installing inner tail light cluster
Removing and installing inner tail light cluster
Special tools and workshop equipment required

t  Removal wedge -3409-
  W00-0016
Removing
–  Switch off ignition and take out ignition key.
–  Turn light switch to position „0“.

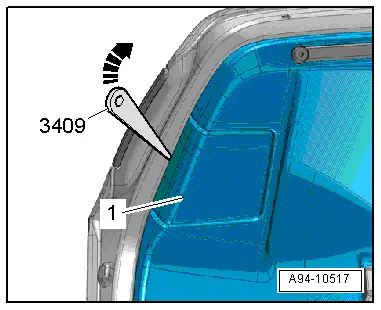

–  Lever off cover -1- with removal wedge -3409--arrow-.
  A94-10517

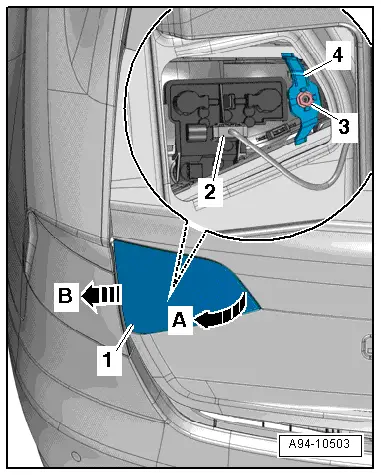

–  Unplug electrical connector -2-.
–  Remove nut -3- and remove retainer bracket -4-.
–  Swivel inner tail light slightly outwards -arrow A- and detach from rear lid in direction of -arrow B-.
Installing
Installation is carried out in the reverse order; note the following:
l  Tightening torque → Chapter
  Note
Ensure that seal between body and tail light housing seals completely.
  A94-10503

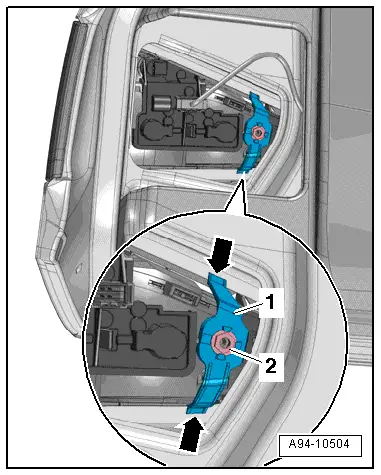

–  Position inner tail light cluster at outer edge of rear lid.
–  Slide retainer bracket -1- onto stud of inner tail light.
–  Tighten nut -2-.
  Note
As the nut is tightened the retainer bracket becomes wedged in the rear lid -arrows-.
  A94-10504
