Removing and installing alternator - vehicles with 2.7 ltr. and 3.0 ltr. TDI engine with dual clutch gearbox Special tools and workshop equipment required

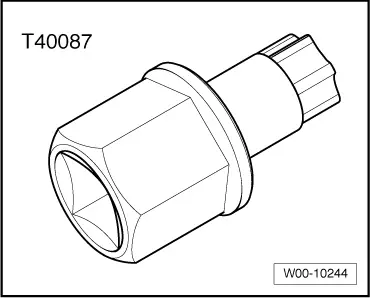

t  Socket Torx T 60 -T40087-

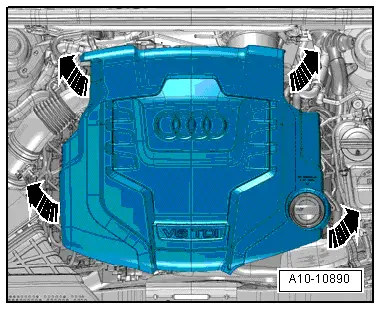

Removing –  With ignition switched off, disconnect earth cable at battery → Chapter. –  Detach engine cover panel -arrows-.

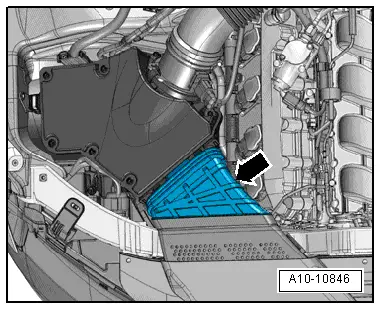

–  Remove air duct -arrow-.

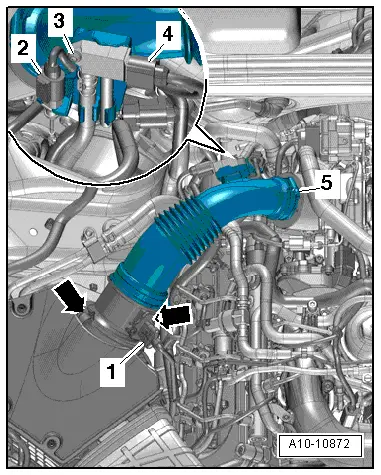

–  Unplug electrical connector -1- at air mass meter -G70-. –  Remove bolt -3- and move clear exhaust gas pressure sensor 1 -G450--item 4- at air pipe. –  Move clear electrical connector -2- for temperature sender after particulate filter -G527- at air pipe. –  Remove air intake hose with air mass meter -G70-. To do so, release hose clip -5- and clamps -arrows-.

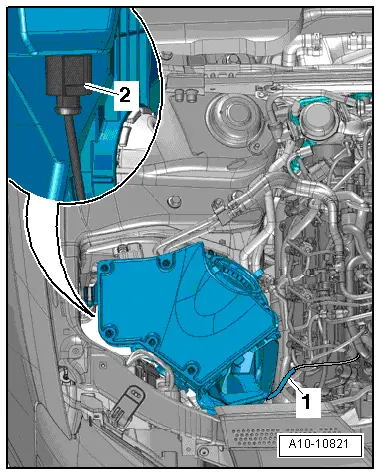

–  Disconnect vacuum line -1-. –  Detach air cleaner (bottom section) and unplug electrical connector -2- on back at air filter bypass flap valve -N275-.

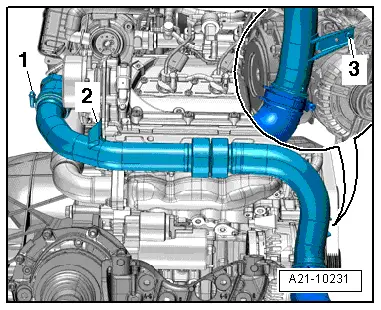

–  Remove bolts -2- and -3-. –  Detach air pipe from air hose (release hose clip -1-).

–  Remove front right wheel. –  Detach front section of front right wheel housing liner and press to rear → Rep. gr.66. –  Remove front noise insulation -1- → Rep. gr.66.

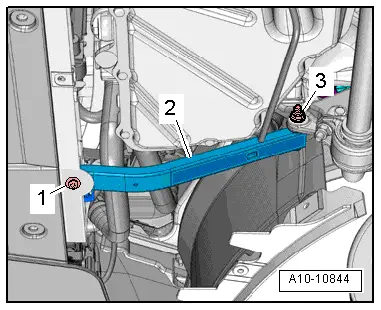

–  Remove bolt -1- and nut -3-. –  Detach strut -2- for lock carrier (right-side).

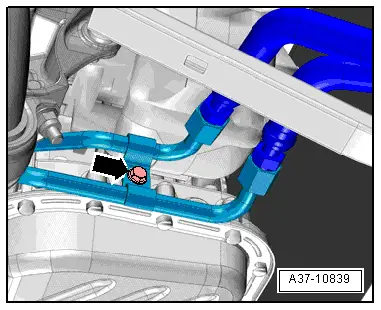

–  Remove bolt -arrow- for ATF lines.

–  Cut open cable tie -3-. –  Unscrew nut -2- and detach earth cable at longitudinal member. –  Remove nut -1- and detach bracket with wiring harness from subframe.

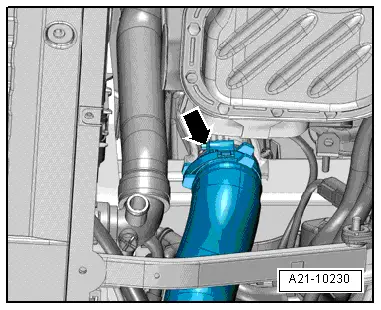

–  Detach air hose from air pipe (right-side) and move clear to one side (release hose clip -arrow-).

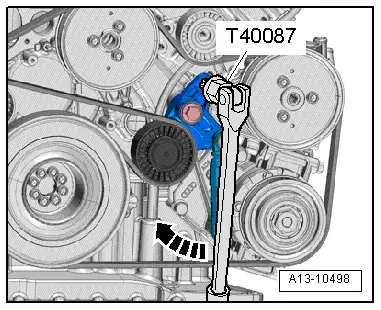

Caution Risk of breakage if the poly V-belt runs in the opposite direction when refitted. Before removing, mark direction of operation of poly V-belt with chalk or felt-tipped pen in preparation for re-installation. –  To slacken poly V-belt, pivot tensioner in clockwise direction -arrow- using socket Torx T 60 -T40087-. –  Remove poly V-belt from alternator pulley and release tensioner.

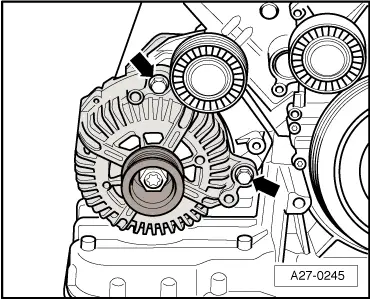

–  Unscrew bolts -arrows- for alternator approx. 6 turns. –  Tap carefully on bolt heads with a hammer to release bushes securing alternator. –  Remove bolts completely.

–  Detach alternator from retainer. –  Unscrew terminal 30/B+ -item 1-. –  Unplug electrical connector -2-.

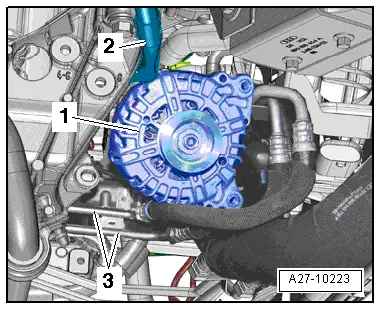

–  Remove alternator -1- towards right side from between wiring harness -2- and ATF lines -3-. Installing l  Tightening torque → Chapter Installation is carried out in the reverse order; note the following:   Note Stiff alternator mount bushes must be freed; otherwise the clamping force of the bush will not be adequate even when the bolts are tightened to the correct torque. –  To facilitate positioning of alternator, drive back sliding bushes for securing bolts slightly. –  Secure ATF lines → Rep. gr.34. –  Install air pipe (right-side) → Rep. gr.21.

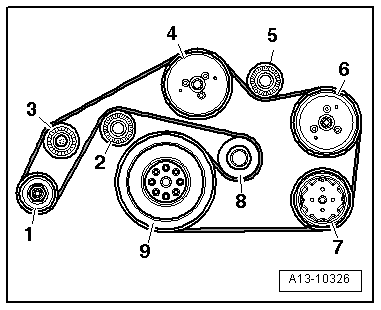

–  Fit poly V-belt onto pulleys in the following sequence: 1 -  Alternator 2 -  Idler roller 3 -  Idler roller 4 -  Coolant pump 5 -  Idler roller (depending on version) 6 -  Power steering pump 7 -  Air conditioner compressor 8 -  Poly V-belt tensioner 9 -  Vibration damper   Note When installing poly V-belt, make sure it is properly seated on pulleys. –  Connect battery. Steps required → Anchor. –  Start engine and check that poly V-belt runs properly.
