Preparations for back-up power supply of battery
Preparations for back-up power supply of battery

Procedure
Vehicles up to 05.2008:

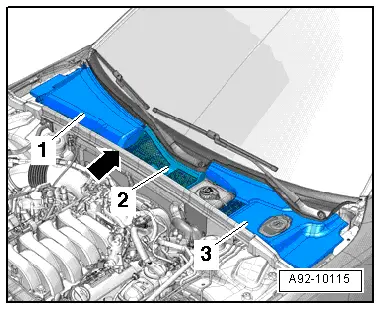

–  Unclip plenum chamber cover -2- and detach.
  Note
Disregard -items 1, 3- and -arrow-.
  A92-10115
Vehicles from 06.2008 onwards:

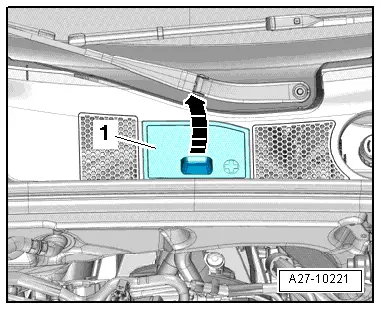

–  Lift off cover -1- at handle -arrow-.
  A27-10221
All vehicles (continued):
–  Release catch -arrow A- and open cover -arrow B-.
  A10-10851

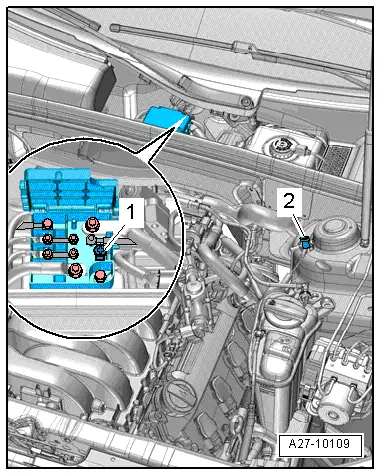

–  Connect red clamp „+“ of battery charger to remote positive terminal -1- and black clamp „–“ to earth terminal -2-.
–  Plug in mains connector of battery charger and switch on battery charger → Electrical system; General information; Rep. gr.27.
  A27-10109
