A4 Mk3

Removing and installing voltage stabiliserJ532
Removing and installing voltage stabiliser -J532-
Removing
–  Switch off ignition and take out ignition key.
Saloon:
–  Lift luggage compartment floor panel and hook onto body.
–  Unscrew nut and take out temporary spare wheel (if fitted).
–  If fitted, remove subwoofer → Rep. gr.91.
Avant:
–  Remove spare wheel well lining → Rep. gr.70.

All vehicles (continued):

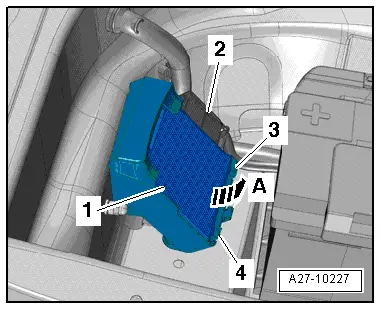

–  Unplug electrical connector -2-.
–  Release retaining tabs -3- and -4- and pull voltage stabiliser -J532--item 1- out of mounting -arrow A-.
Installing
Installation is carried out in the reverse order; note the following:
–  Install subwoofer → Rep. gr.91.
–  Install spare wheel well lining → Rep. gr.70.
  A27-10227
